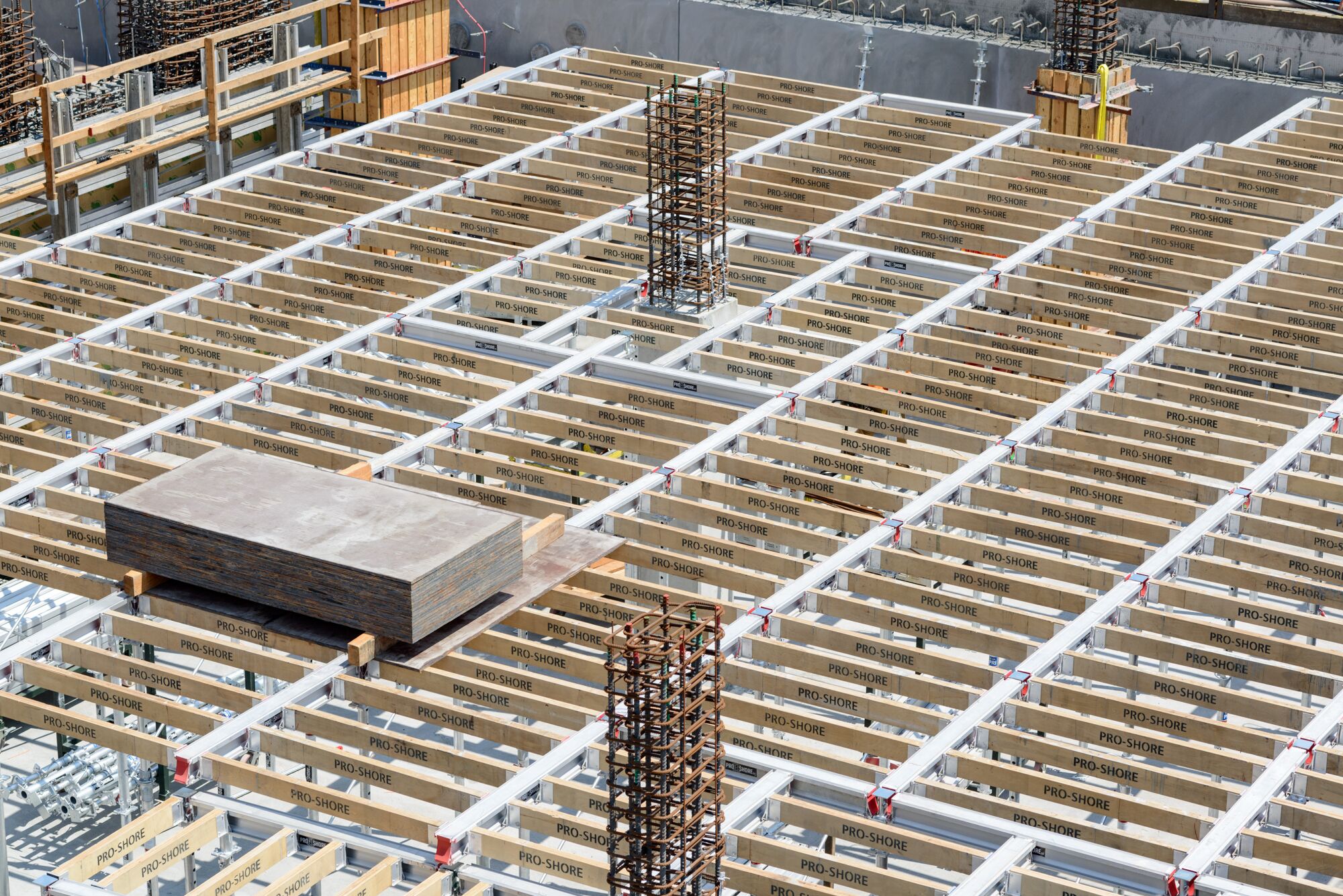

The Pro-Shore™ Shoring System consists of Lightweight easy to use Universal Drophead Post Shores, Lightweight Aluminum Ledgers (AKA "Mains"), and LVL (Laminated wood joists--AKA "Secondary"). The Pro-Shore™ Shoring system was designed in conjunction with Top California Concrete Contractors to significantly improve labor productivity, reduce material costs, and provide versatility not found in any other Single Post Shoring system.
The Pro-Deck™ Shoring System uses the same Lightweight easy to use Universal Drophead Post Shores and Lightweight Aluminum Ledgers (AKA "Mains"), but in lieu of LVL secondary" Joists, Pro-Deck™ utilizes 6' x 8' or 6'x6' Bays formed with Lightweight Aluminum. These Pro-Deck™ Panels span the 6-foot or 8-foot dimension between Lightweight Aluminum Ledgers. - Each 6' x 8' Bay requires 2ea 3' x 6' panels and 1ea 2' x 6' panel. - Each 6' x 6' Bay requires 2ea 3' x 6' panels only. The Pro-Deck™ Panels are made from lightweight/high-strength 6061-T6 Aluminum Extrusions welded together by Certified Welders and strict WPS and WPQR. The 3'x6' panel weighs only 48lbs and the 2'x6' Panel weighs only 27lbs and both ship in easy to load/unload/stack special Panel Carts that utilize High Capacity Caster for ease of movement on the jobsite. The Pro-Deck™ Panels are comprised of high-grade 400 gram phenolic resin coated Birch Plywood or Alkus (Premium) for a smooth concrete surface and easy form release.
- Only 3 main components: Post Shores, Aluminum Ledgers, and LVL Joists. - Easy to handle and quick to set up. Experience shows that crews of as few as 3-4 Men can erect up to 7,500 sq. ft. or more in a day. - Universal Dropheads permit easy stripping of horizontal members so they can be cycled to the next pour. Post Shores are reset in place as Re-Shores, while 75% of the total system moves to the next pour. - Imperial dimensions - NO Metric parts. - 8'-0" x 6'-0" post grid (48 sq. ft.) requires 25% fewer posts than typical metric post grid systems, and can support a 12-inch-thick slab, saving erection time and labor, while opening up the workspace below. - Versatile. The system can handle cantilevers, drop beams, column capitals, and other common forming requirements, including ramps at grades of up to 17%. - All Steel Post Shores have attached Jet-Locks so standard steel CrossBraces can be used to produce a fully braced tower with no tripods or wood bracing.
