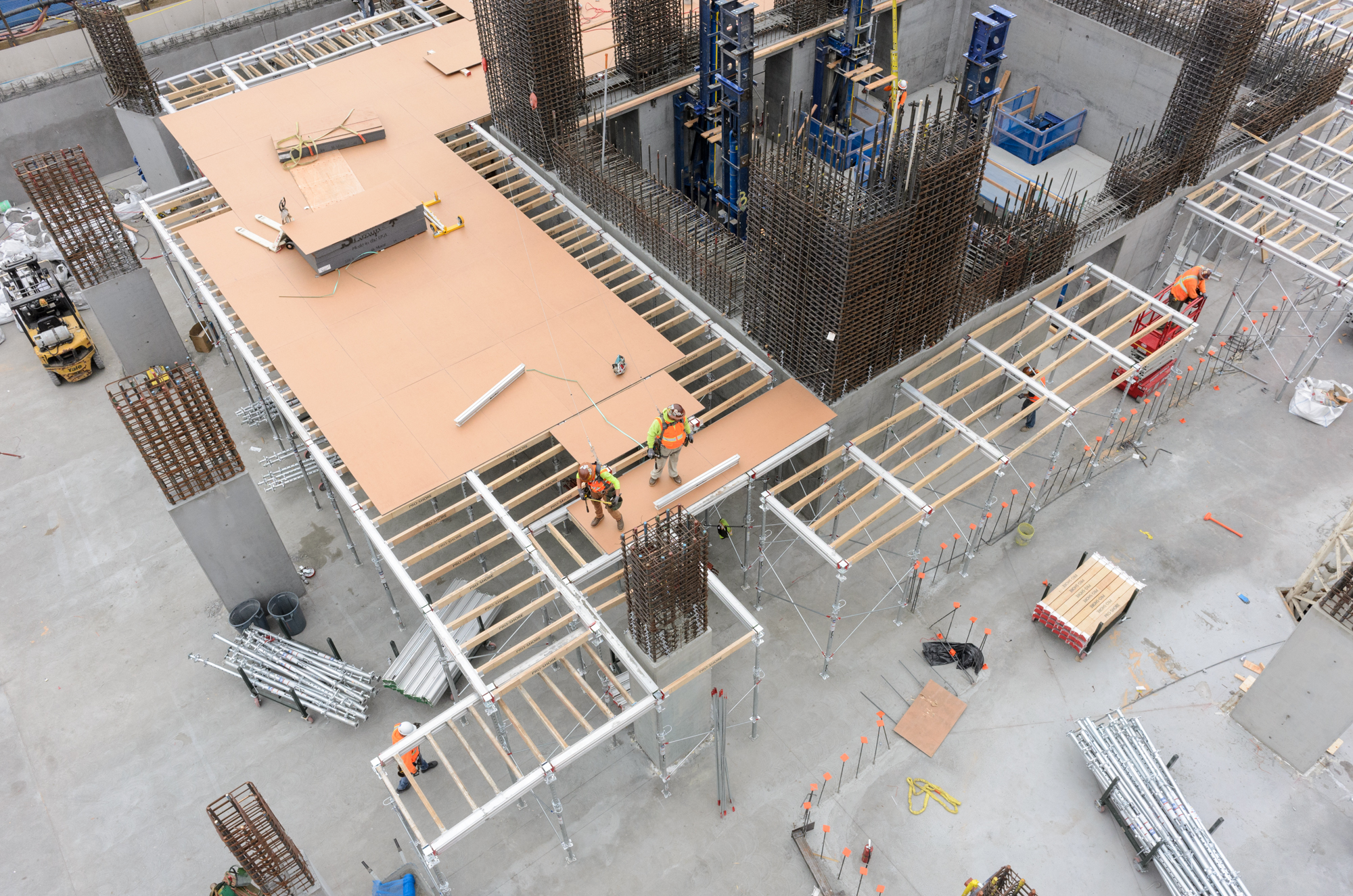

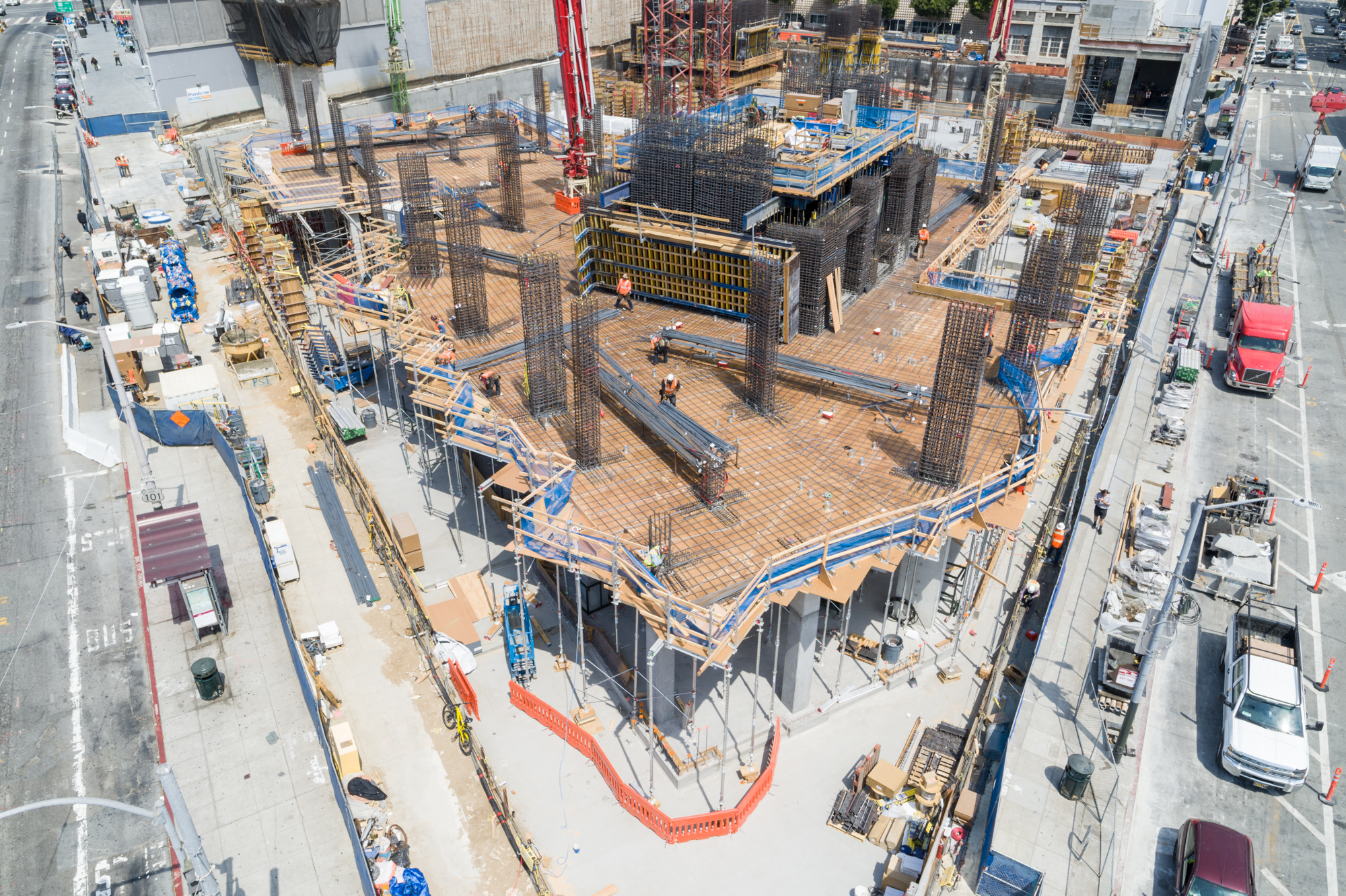

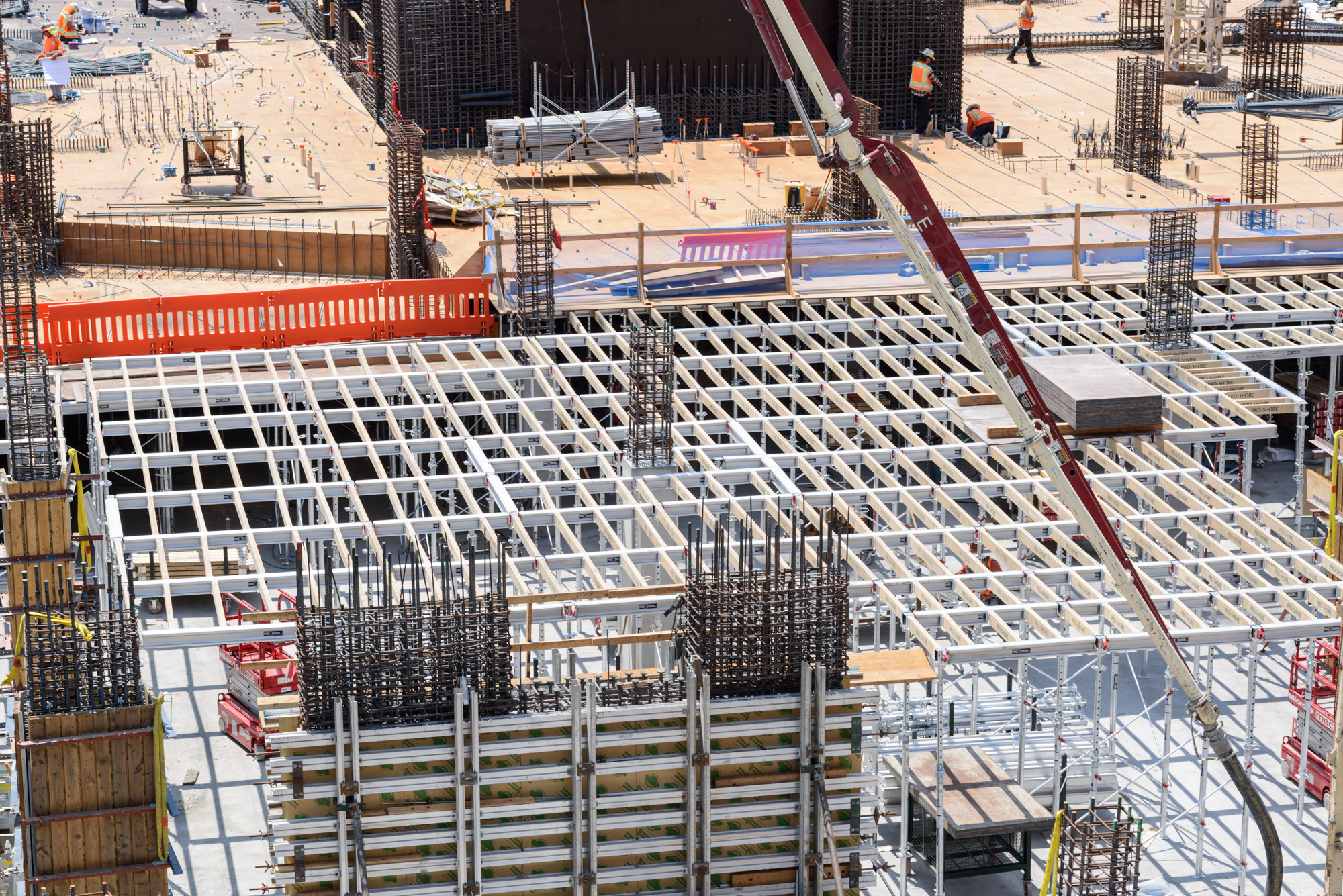

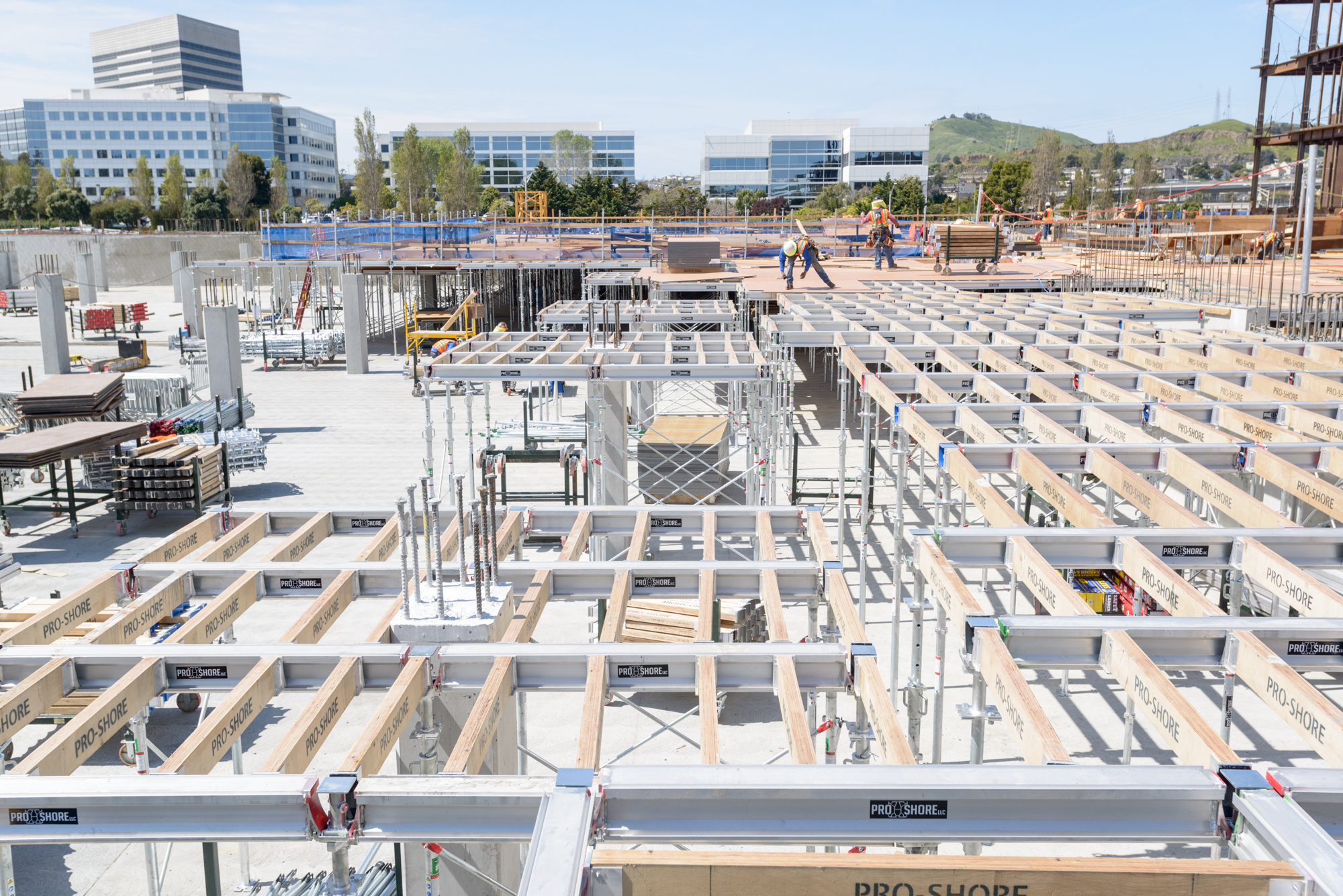

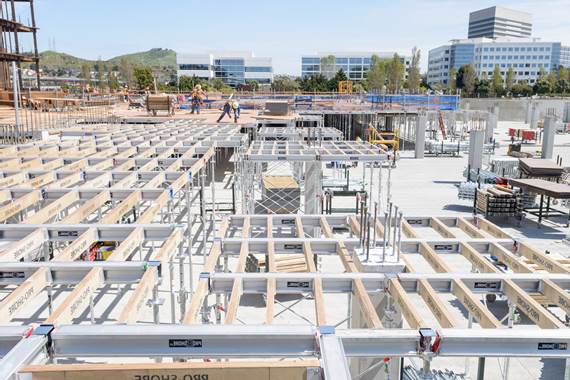

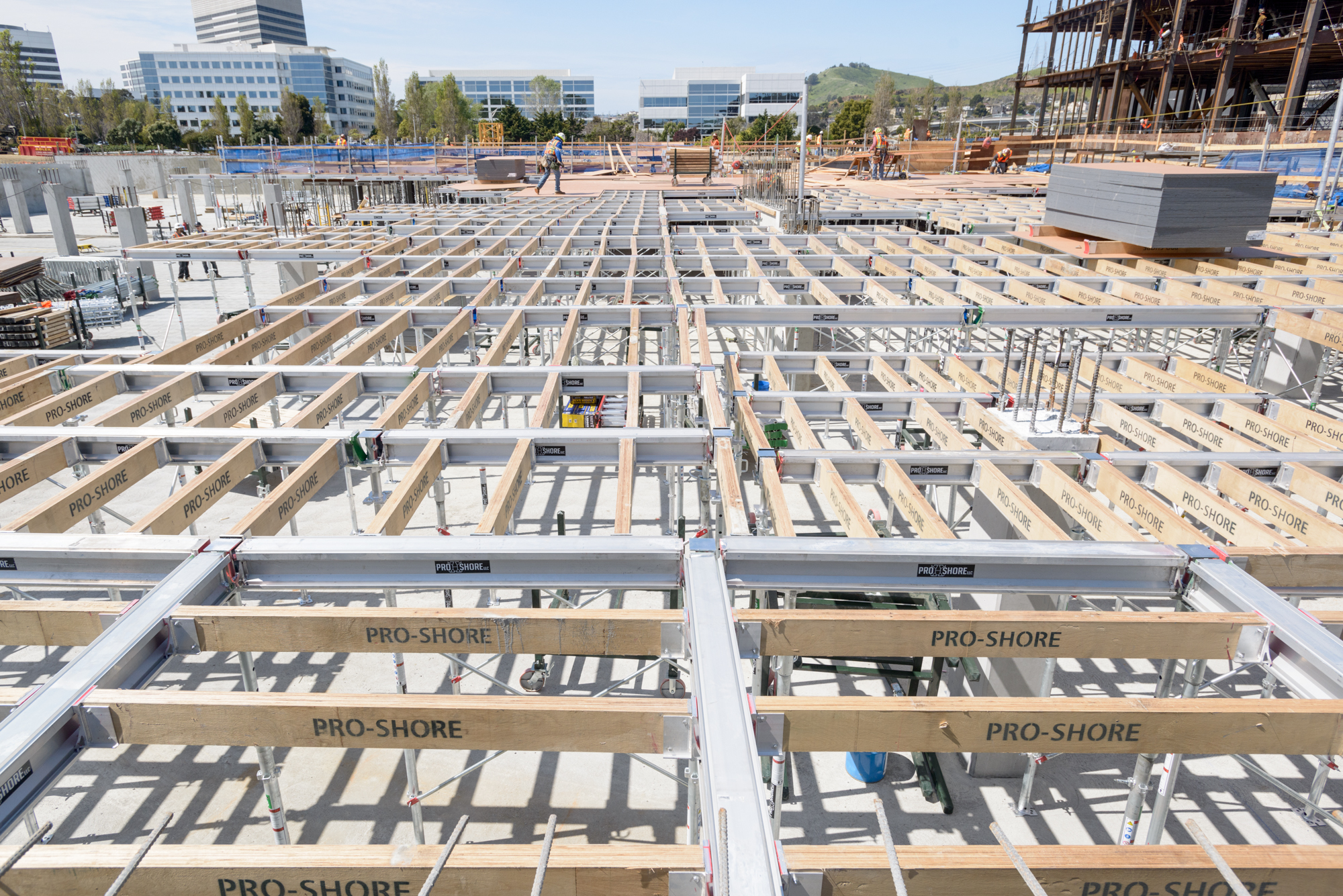

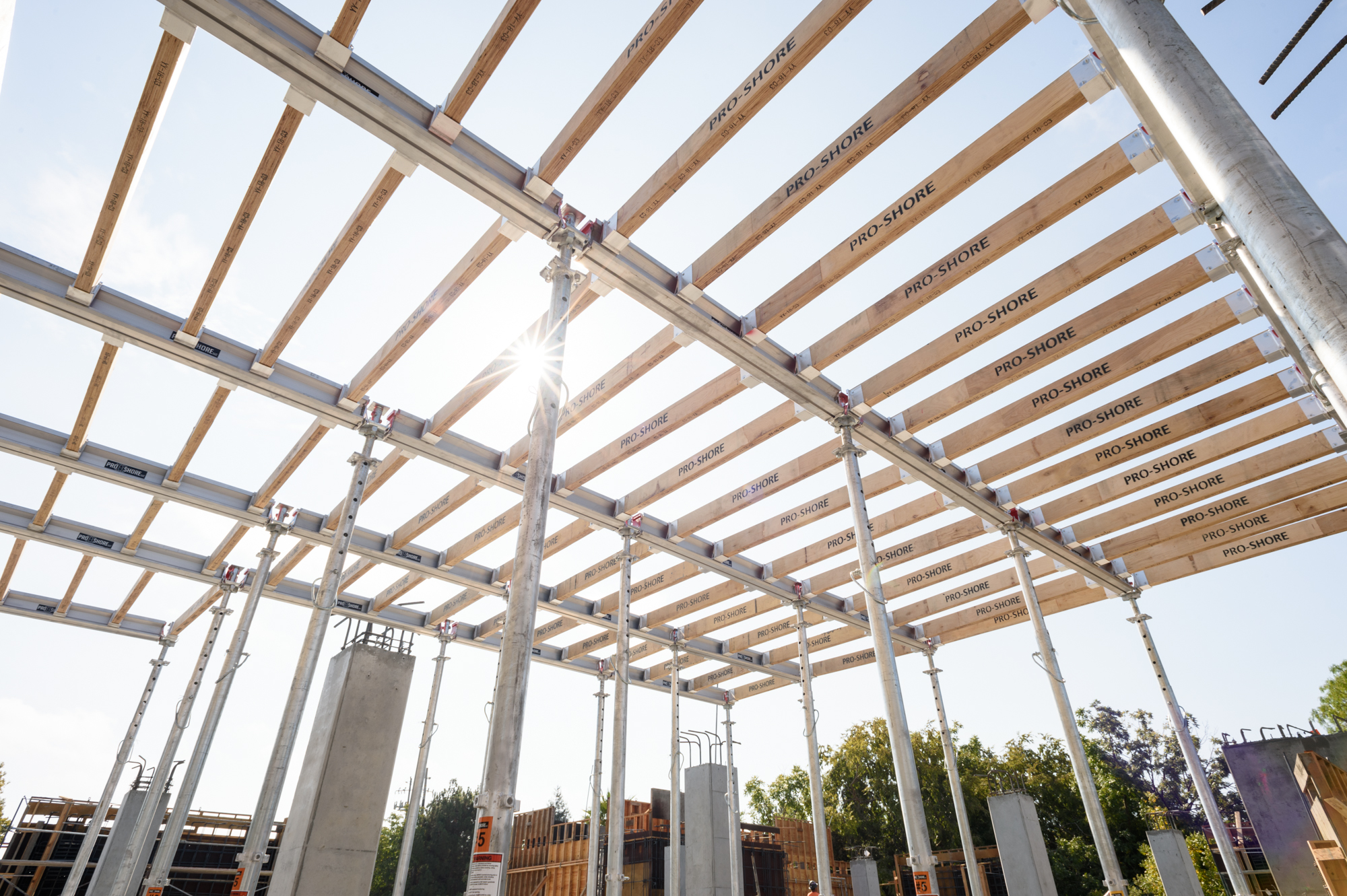

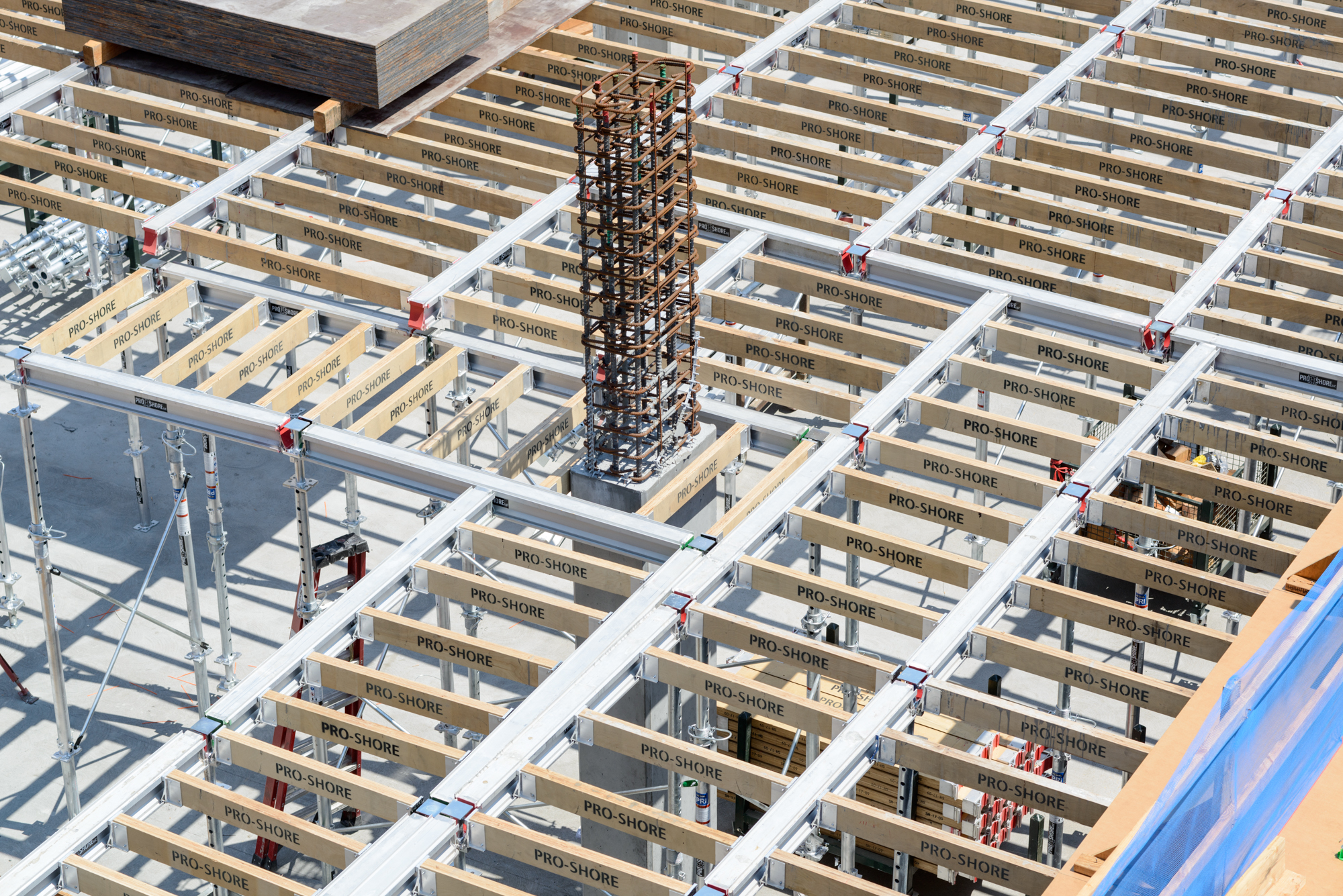

The Original Pro-Shore™ Horizontal Hand Set Decking System is utilized by most of the top concrete contracting firms globally. The Pro-Shore™ Modular decking system is based on imperial dimensions for ease of use and has been successfully utilized to build thousands of mid to high-rise Buildings across the globe. Below are some of the features of our core system.
The Pro-Shore™ Advantage

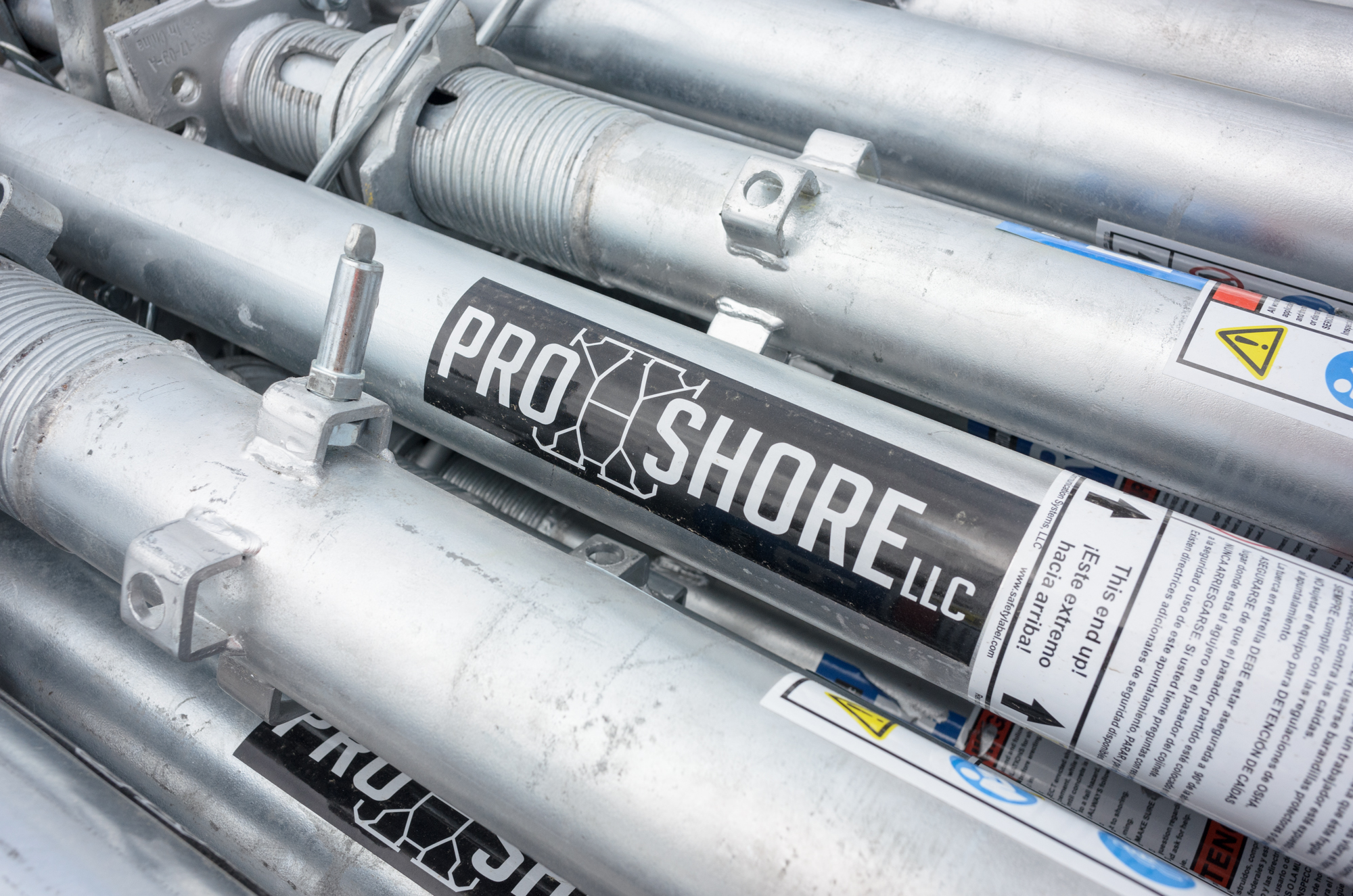

6'10" to 21'-0 3/4" single post capability.

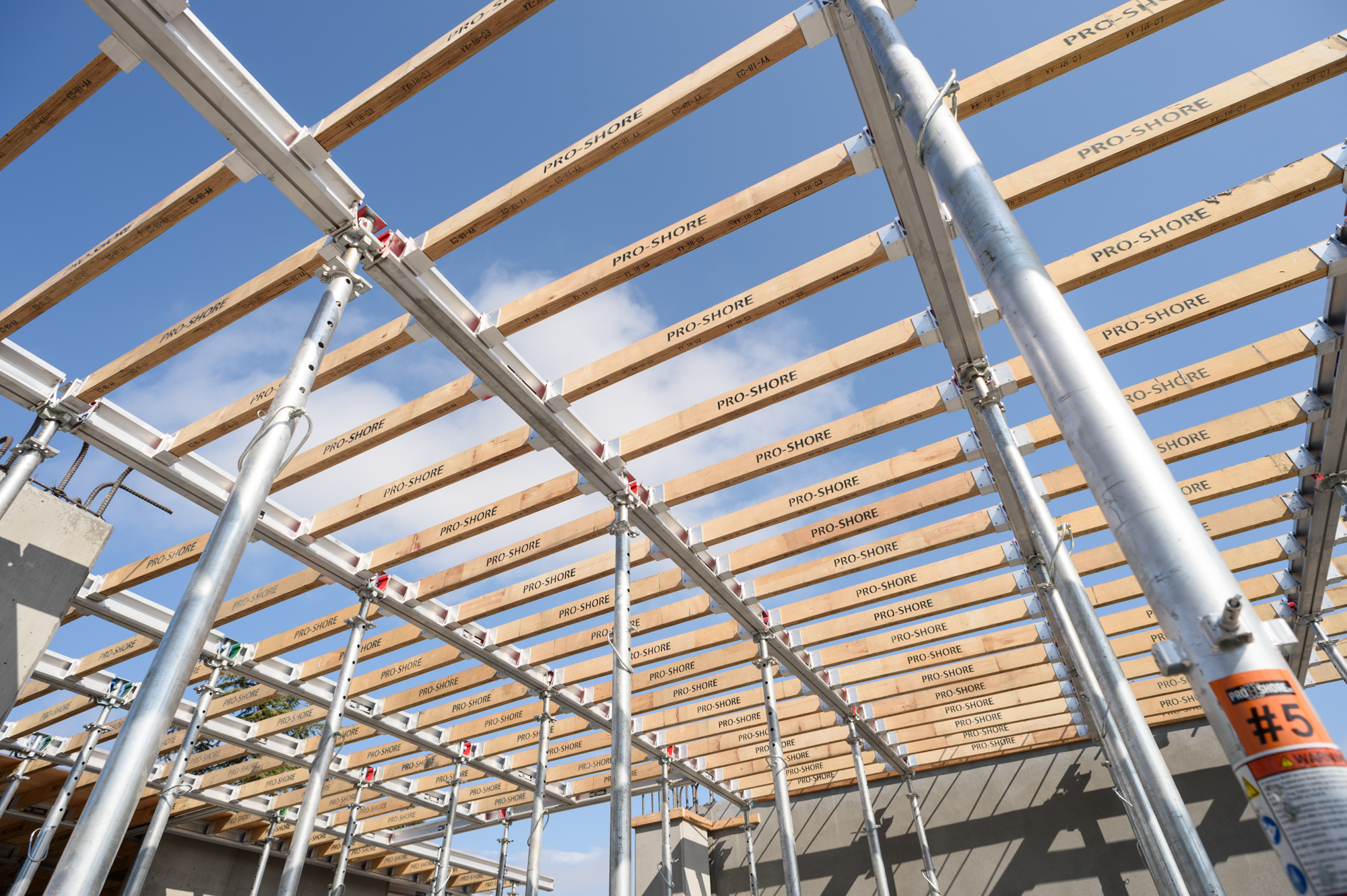

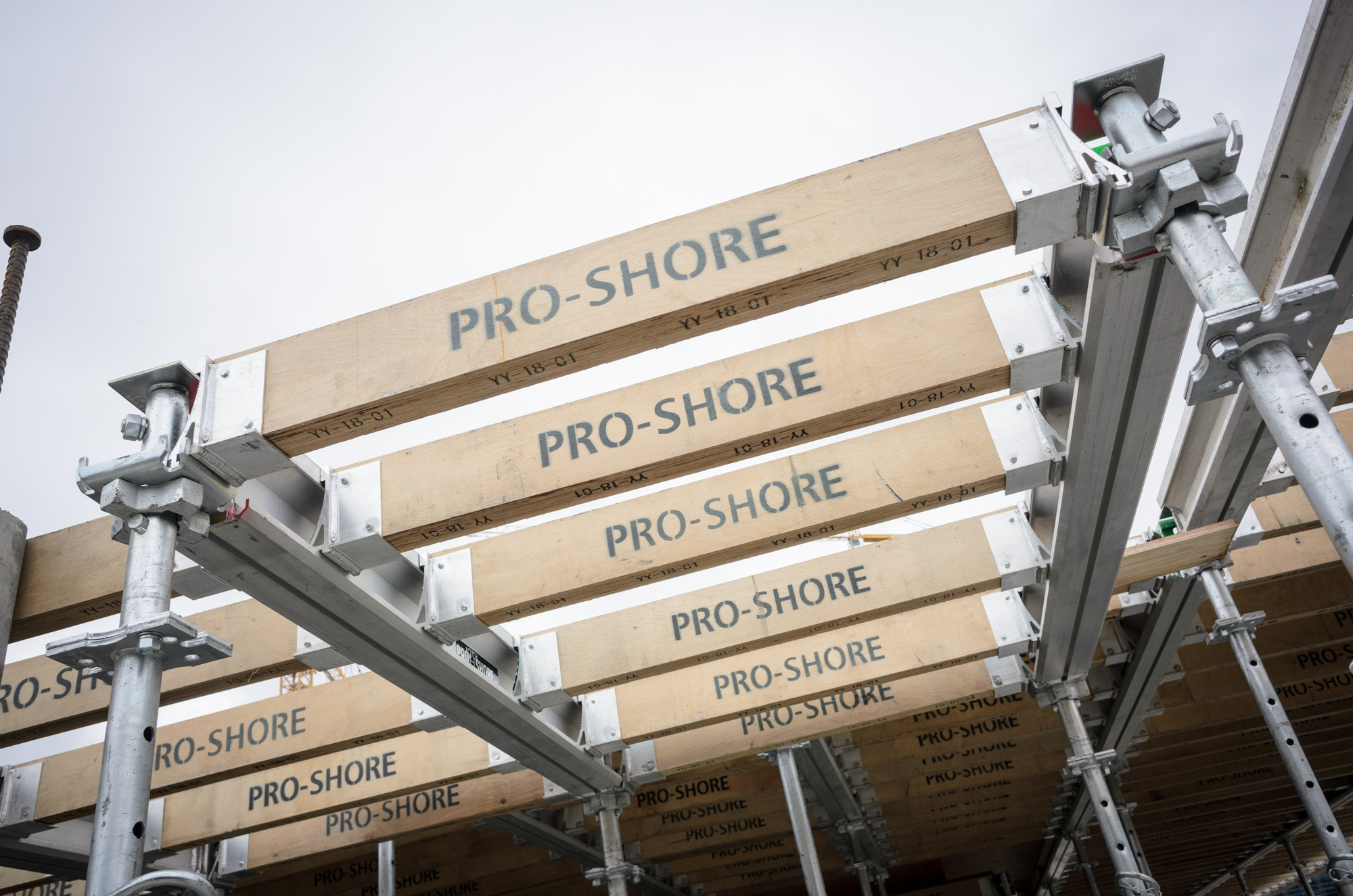

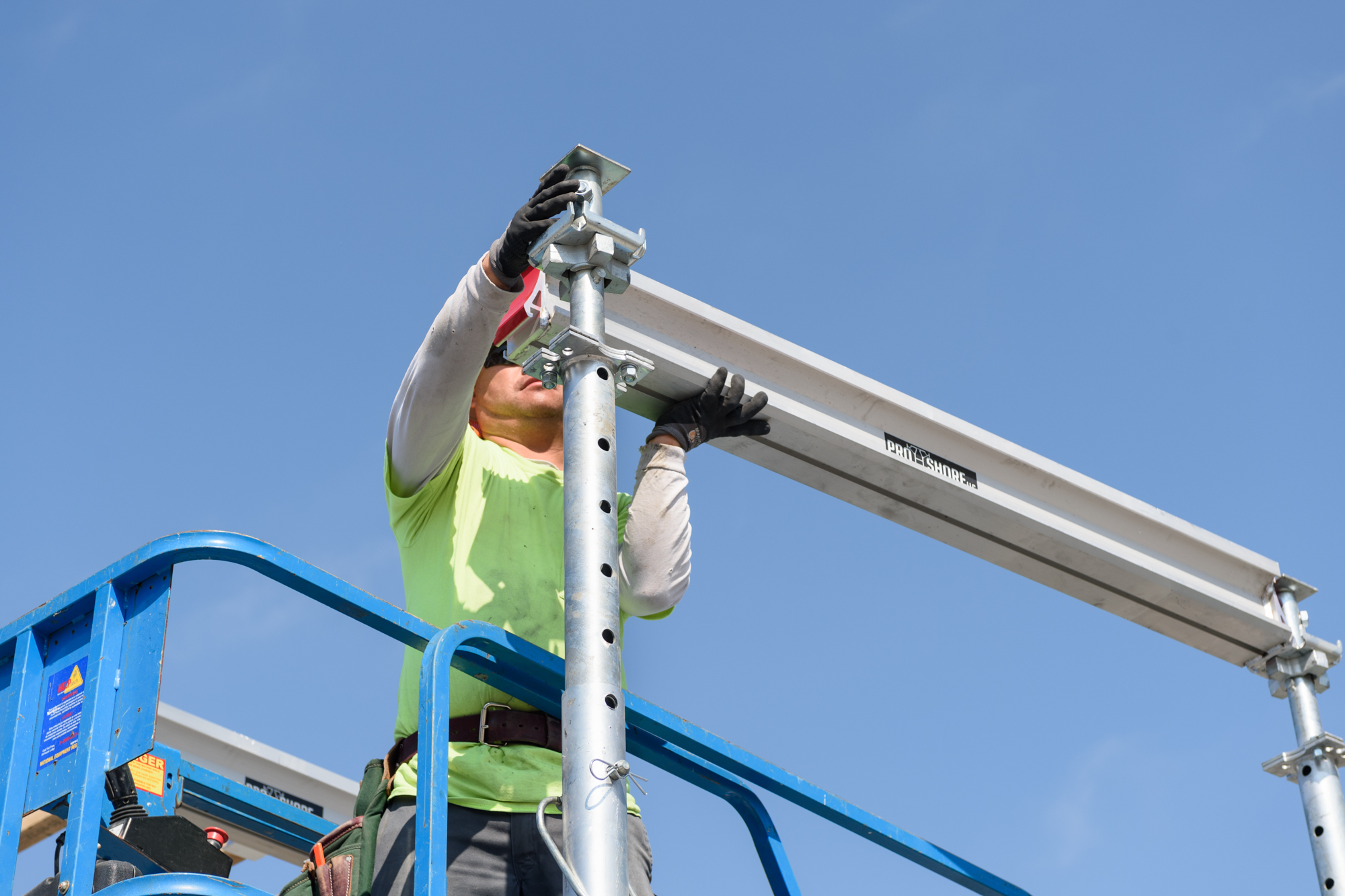

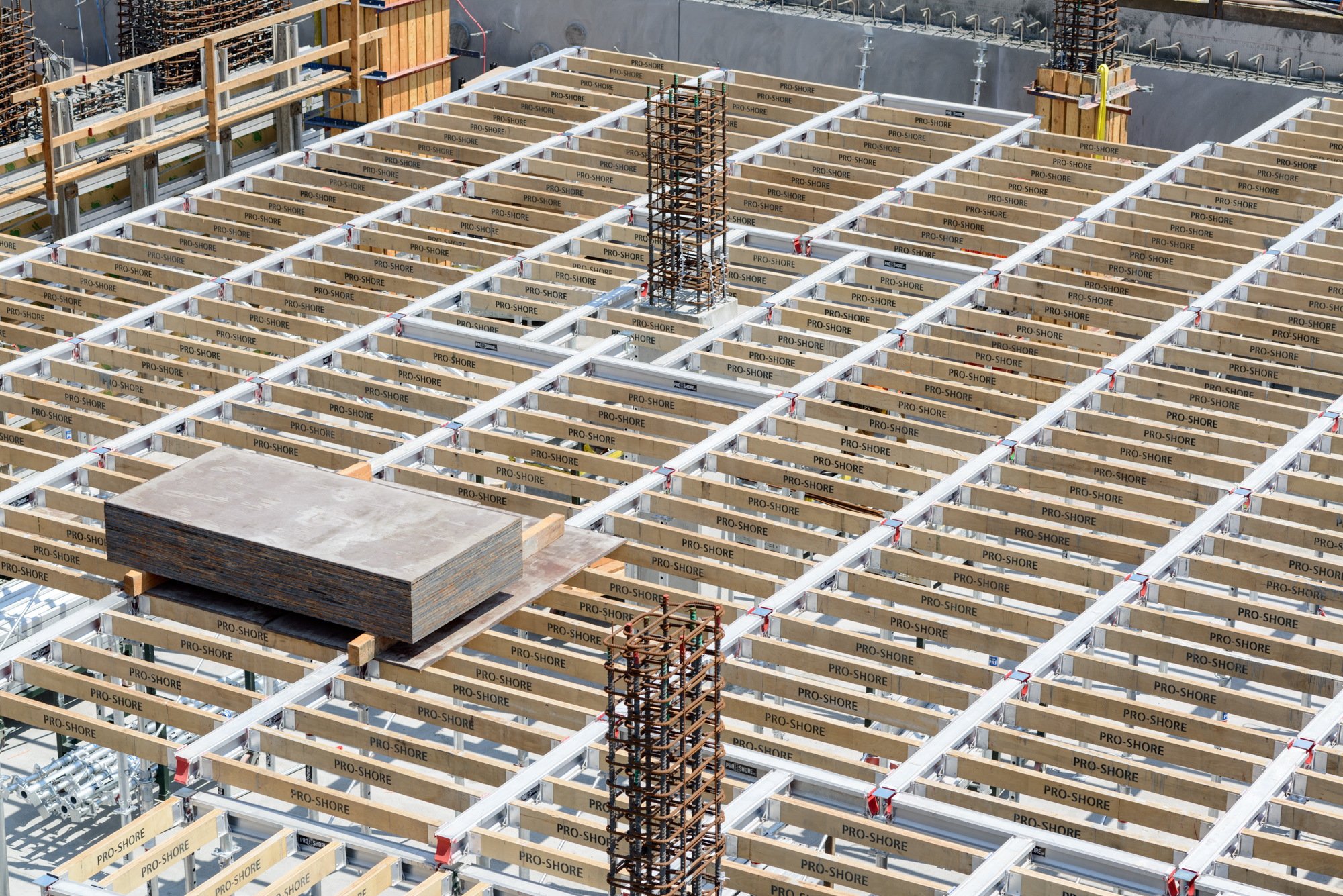

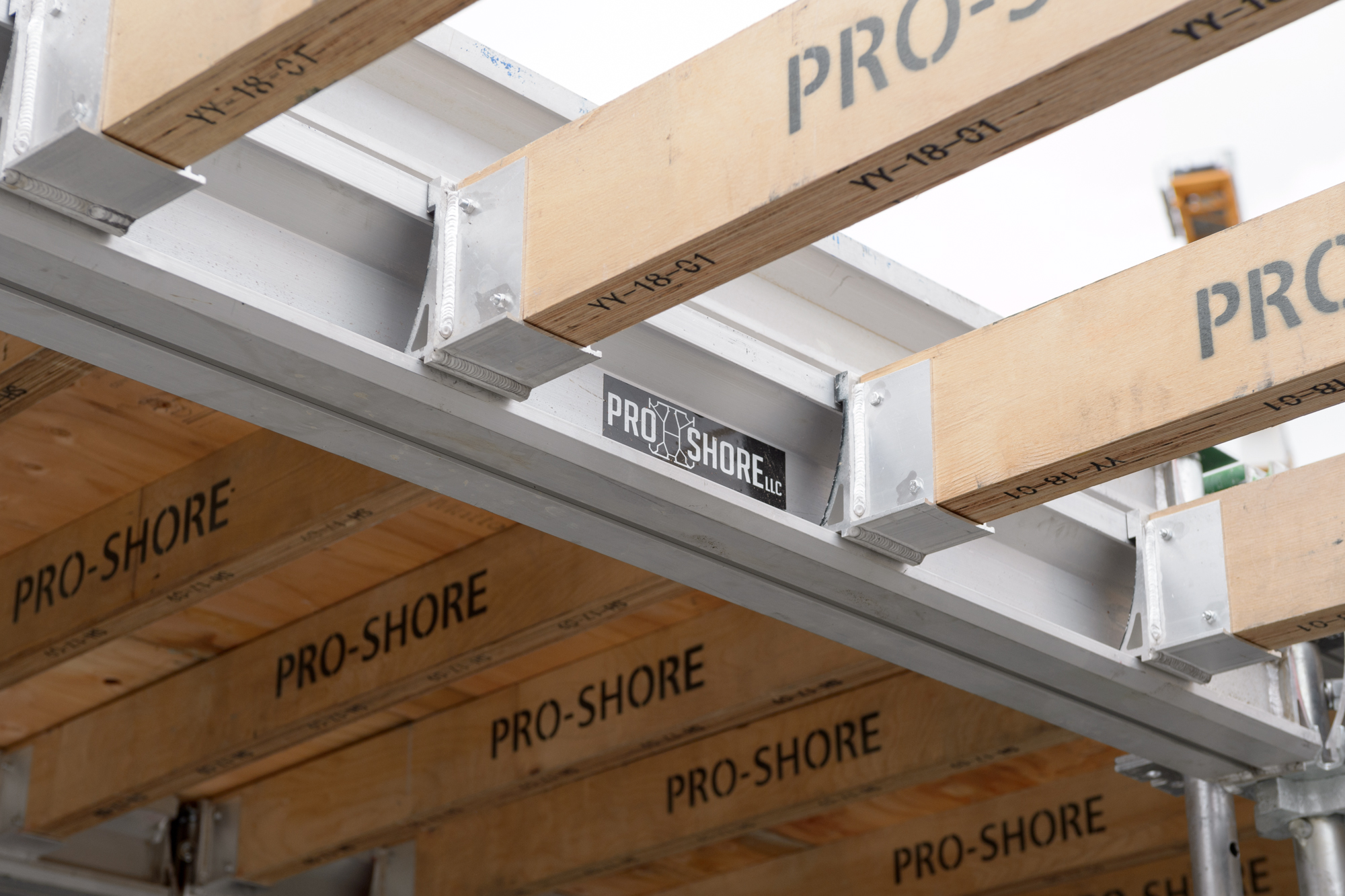

"Dropheads" allow ledgers and joists to be stripped while leaving reshores in place. 70% Material recovery 1 day after pouring possible only vertical posts stay in place as reshores.
Ramps and Decks with slopes up to 15% can be shored and safely braced to resist lateral loads.

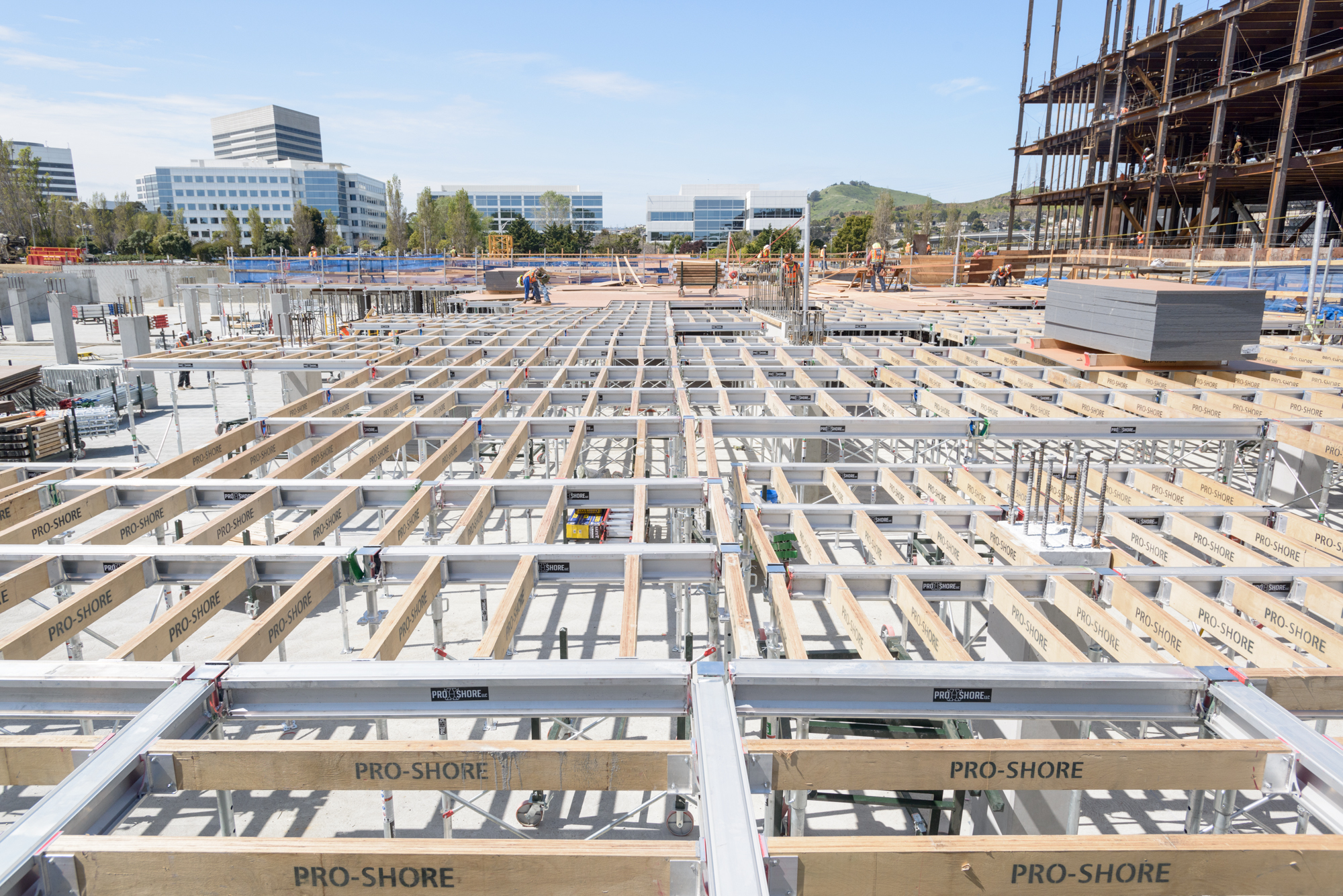

6'0" to 8'0" post grid (48 sq. ft.) requires 25% fewer posts than European 2m x 2m (approx. 36 sq. ft.) post grids.
Up to 24" slabs can be supported with standard equipment.
Fully braced cantilevers allow 4'0" walkways beyond slab edge.

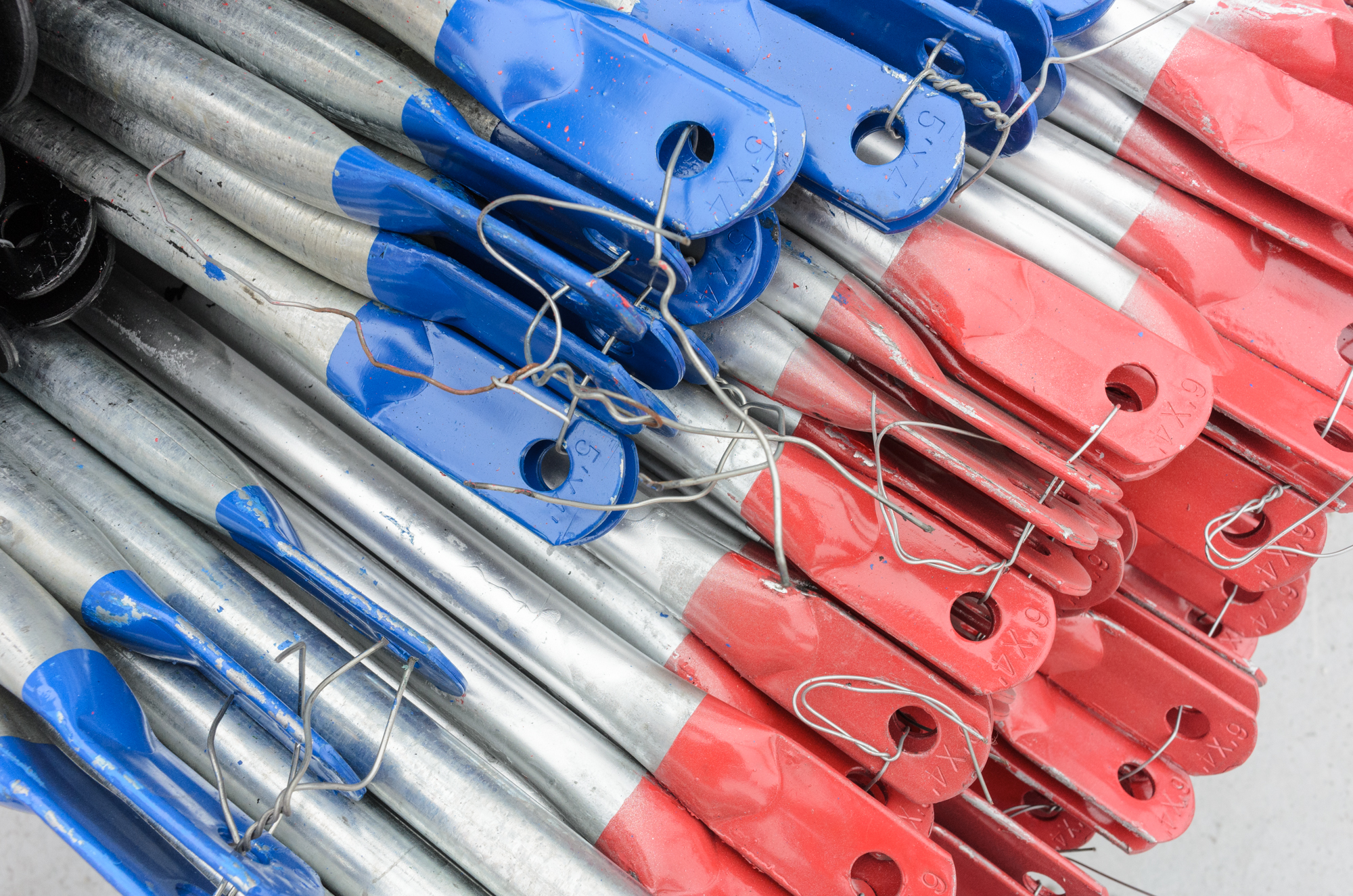

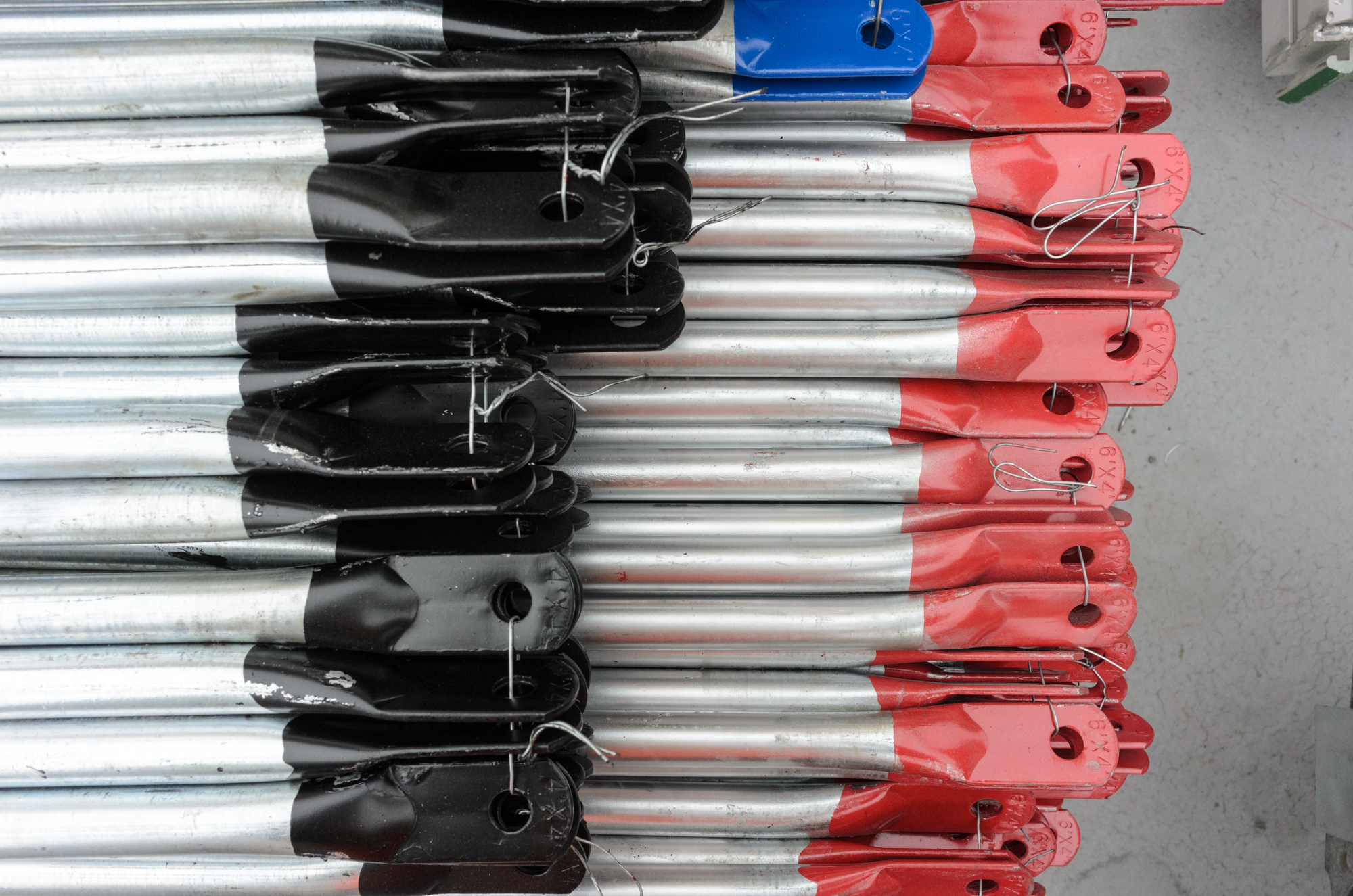

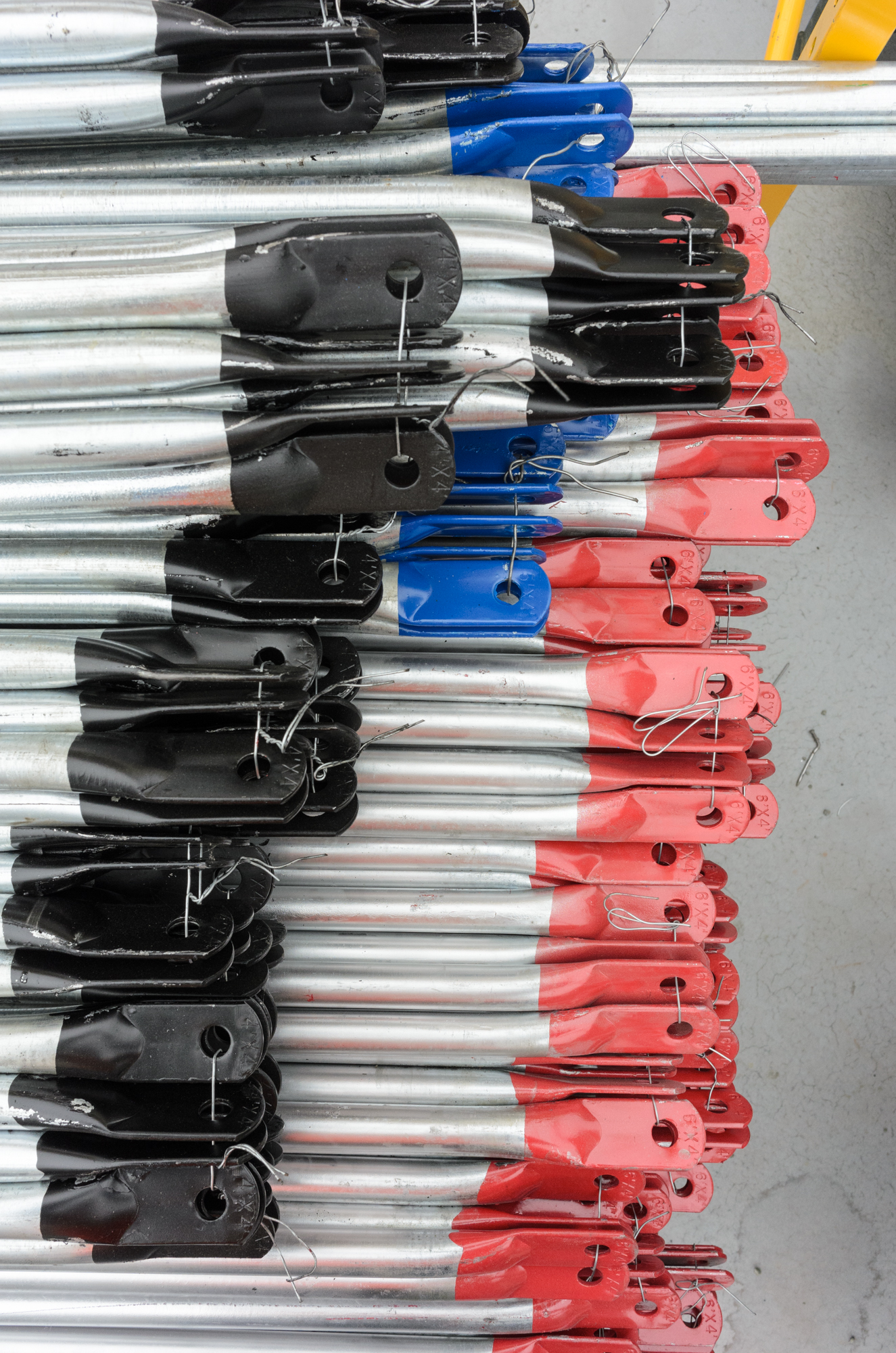

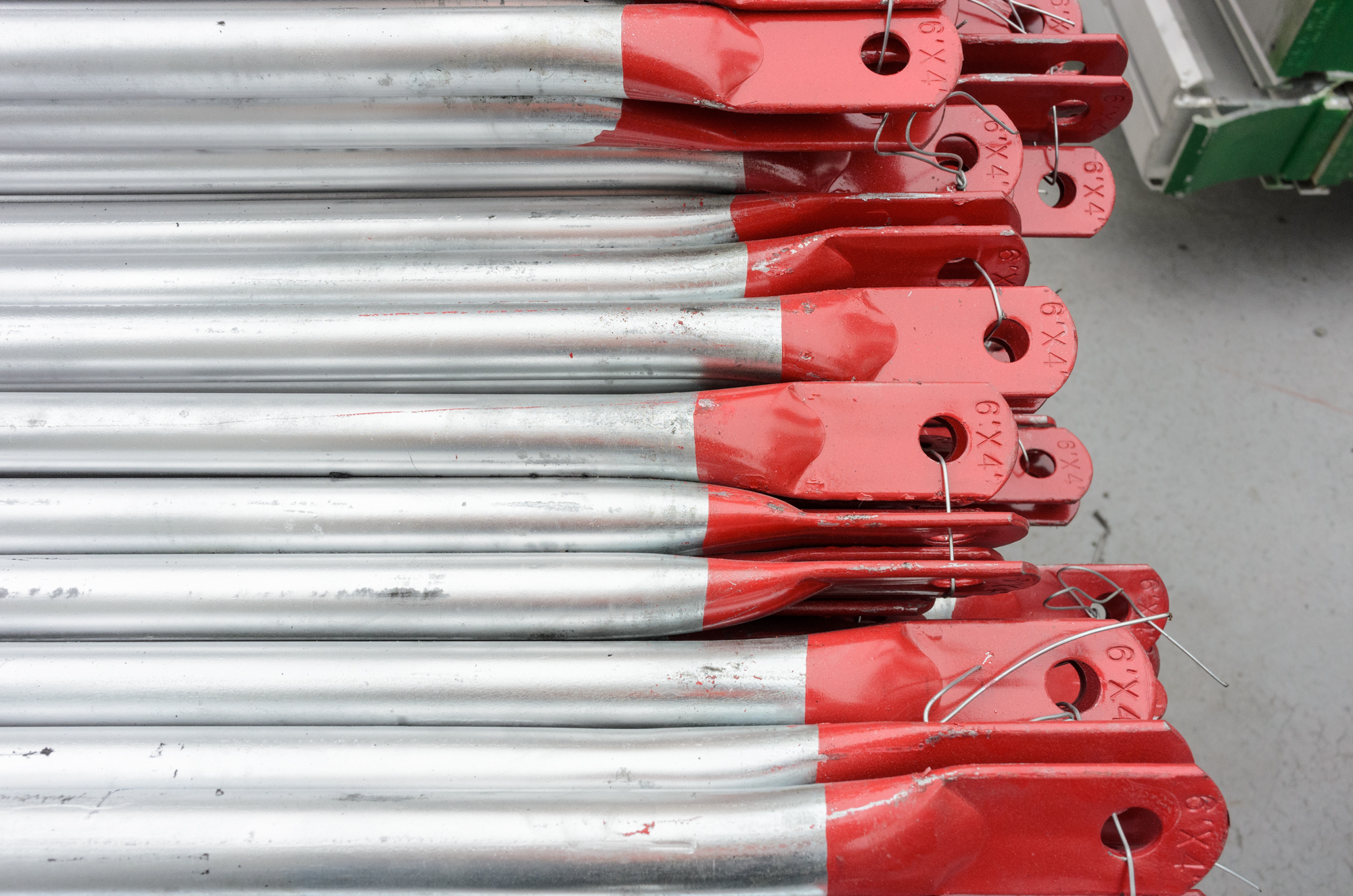

All parts are color coded to match erection drawings.
5000 to 6000 Sq. Ft. of equipment can be loaded on a 40'0" flatbed, results in Lower freight costs.

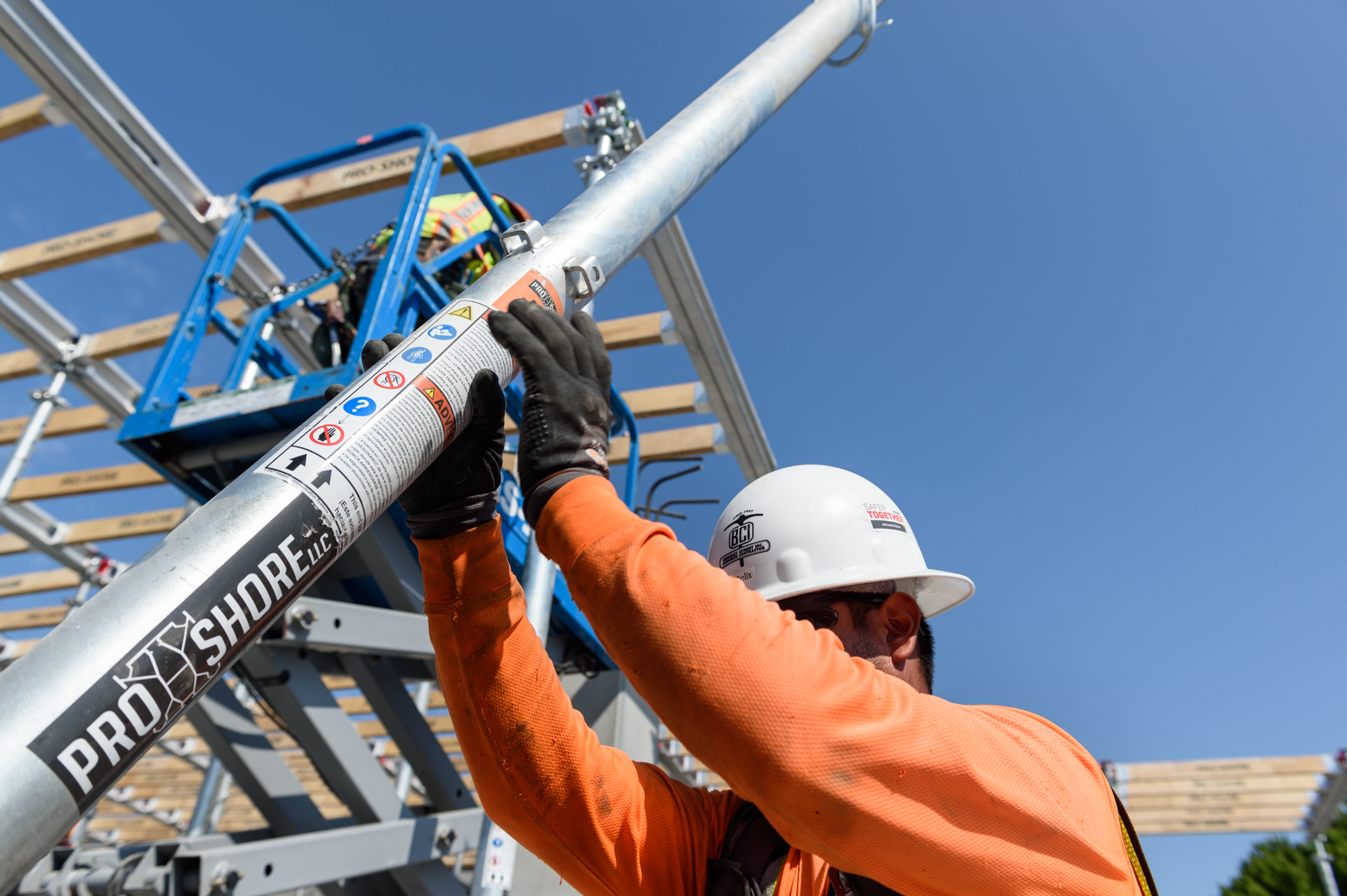

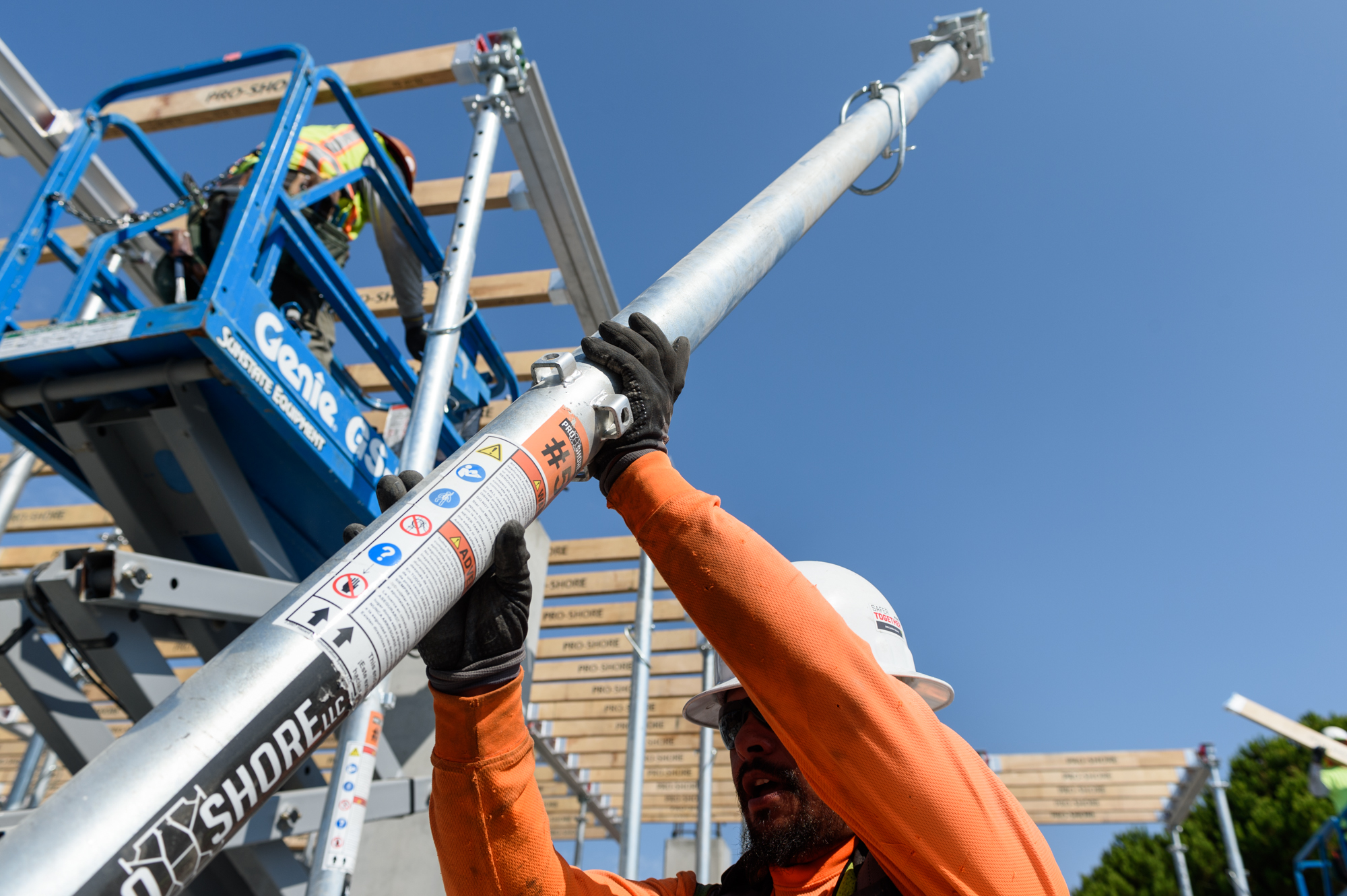

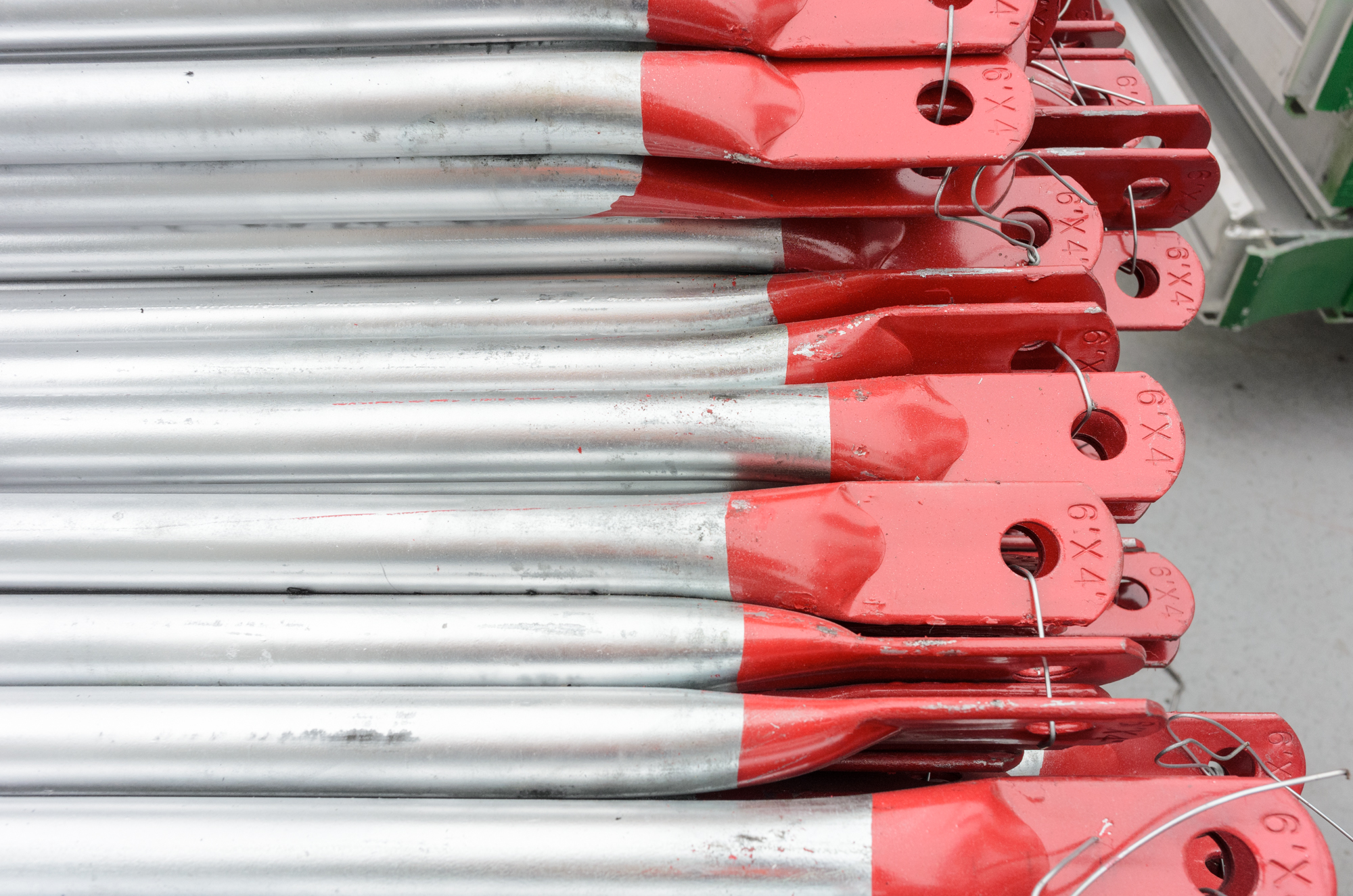

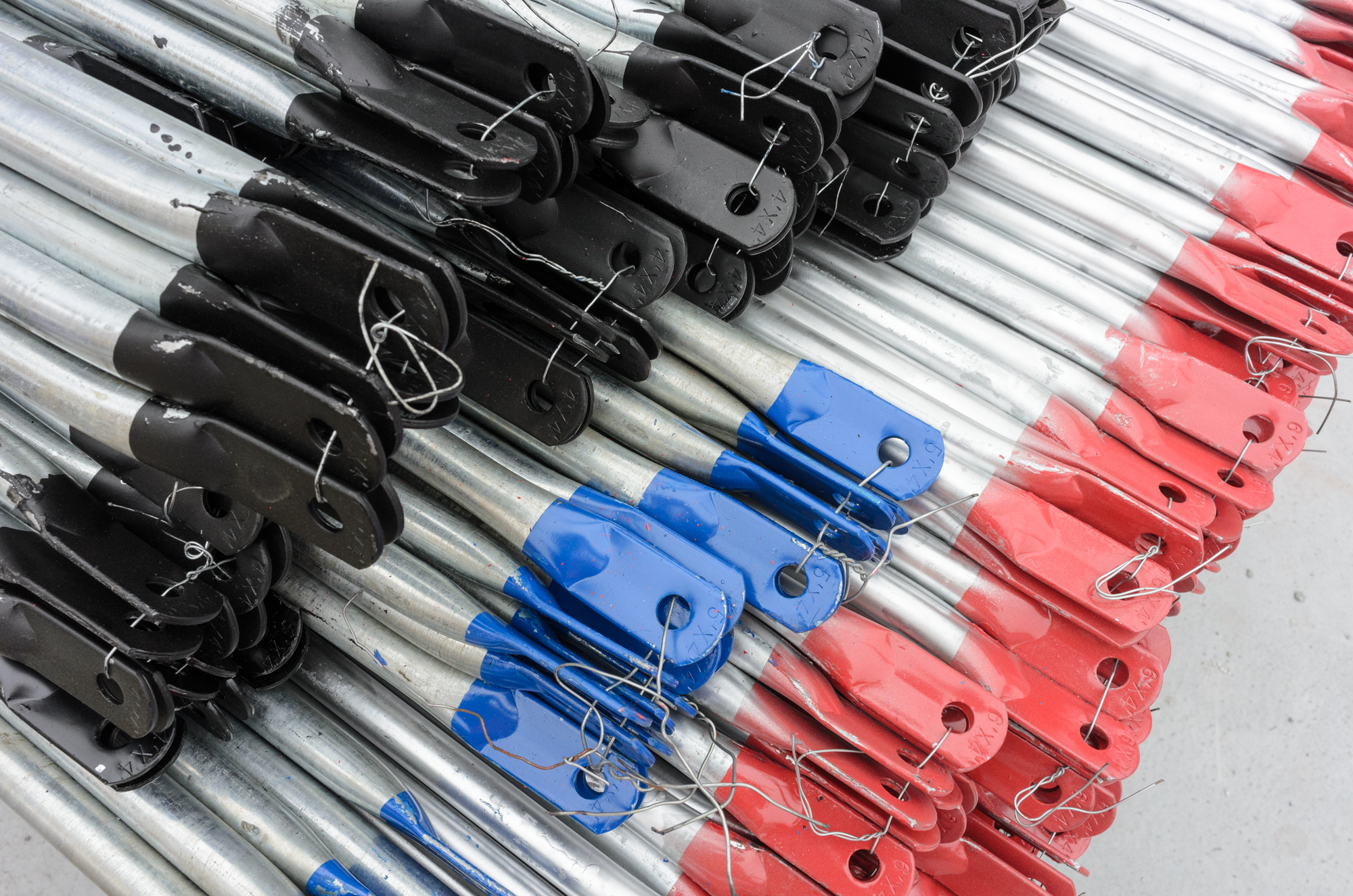

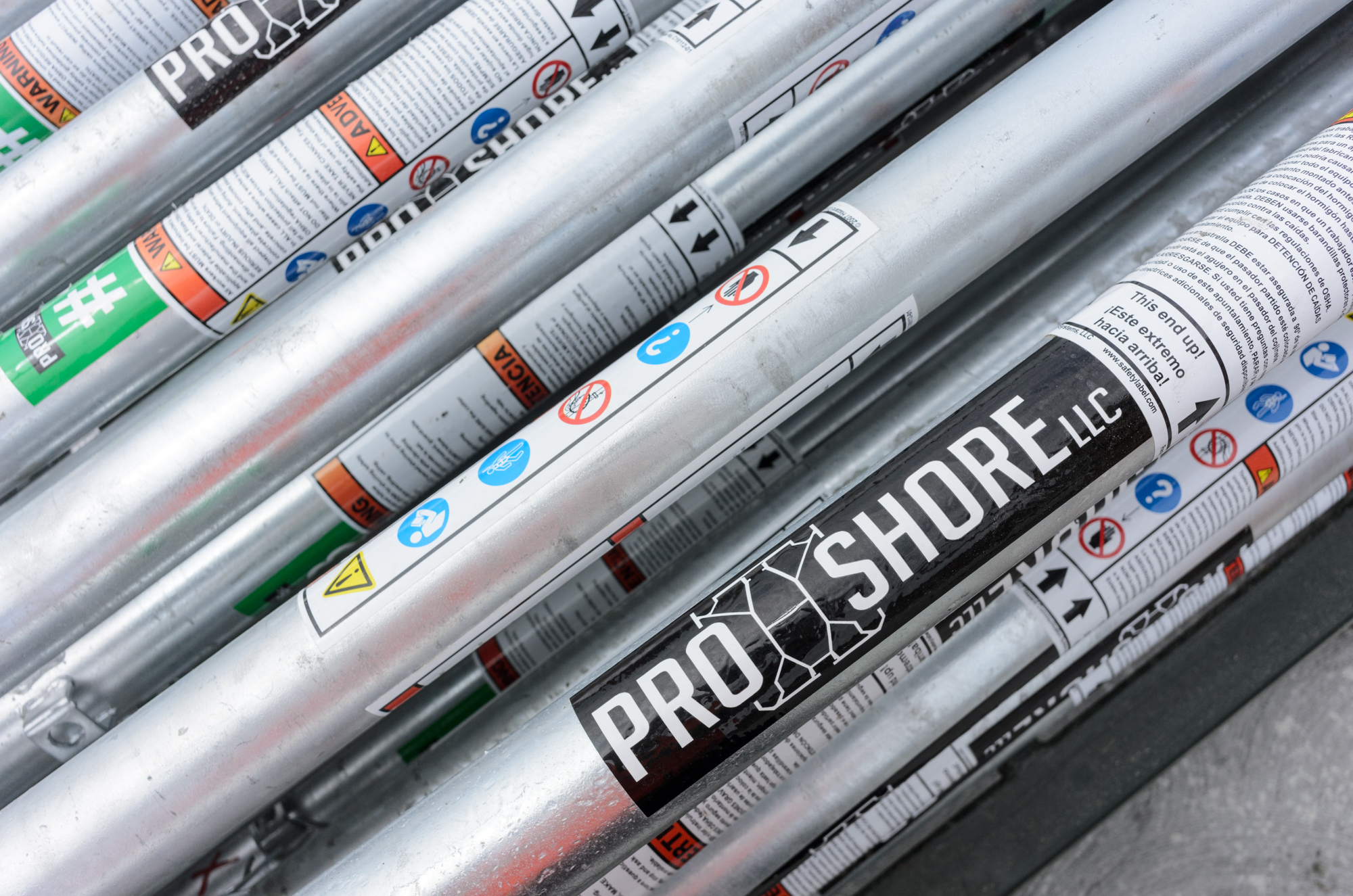

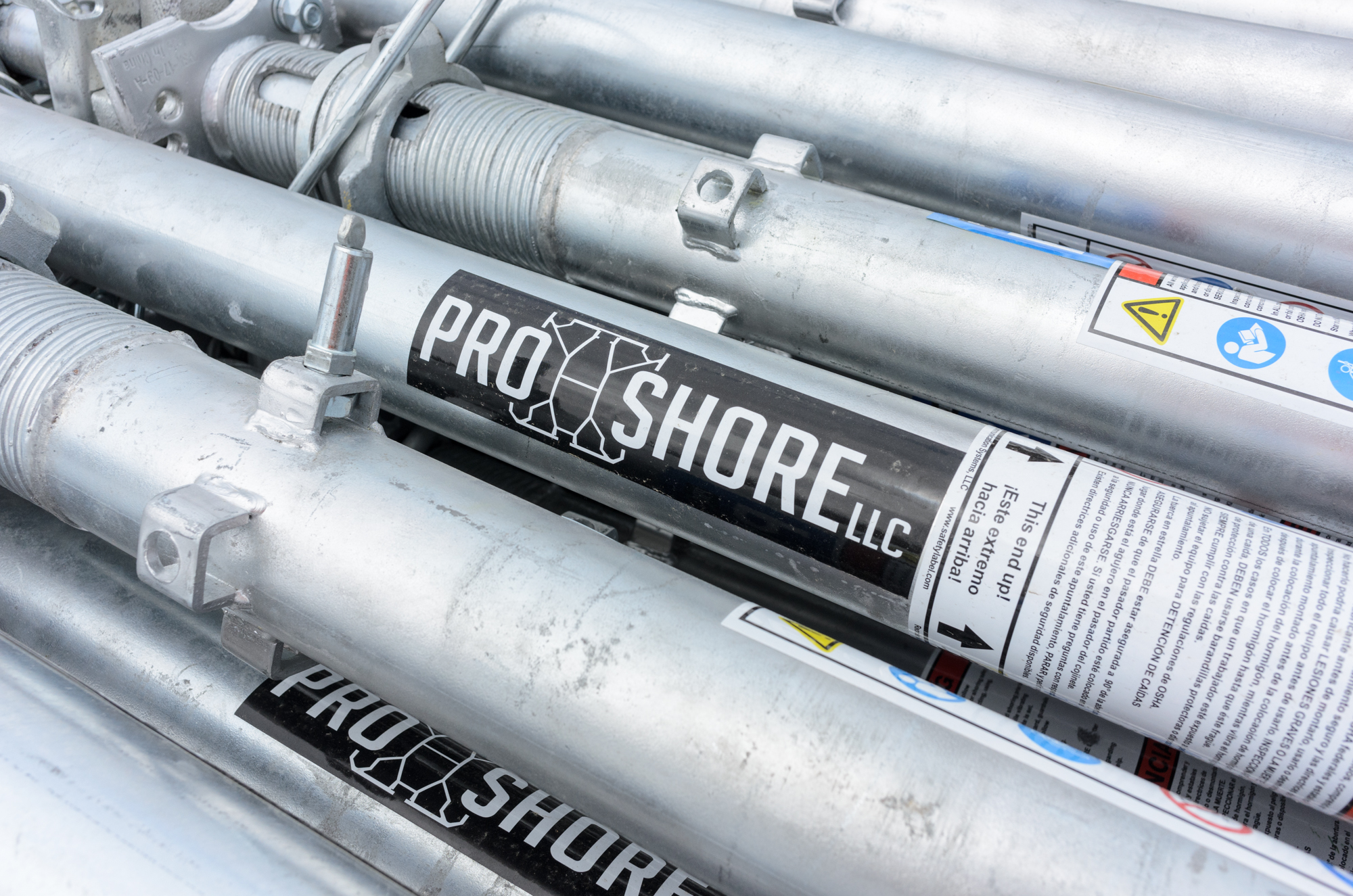

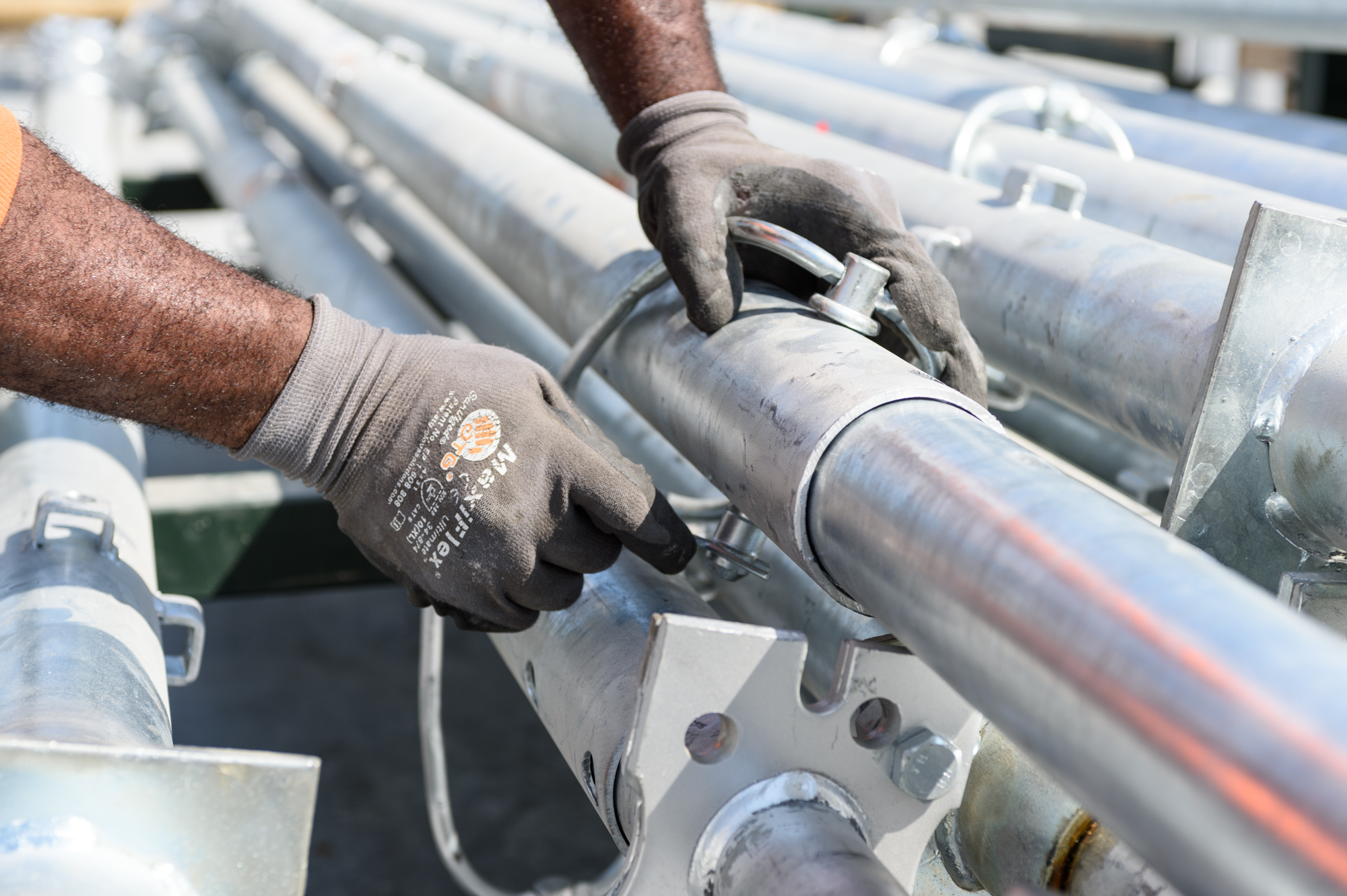

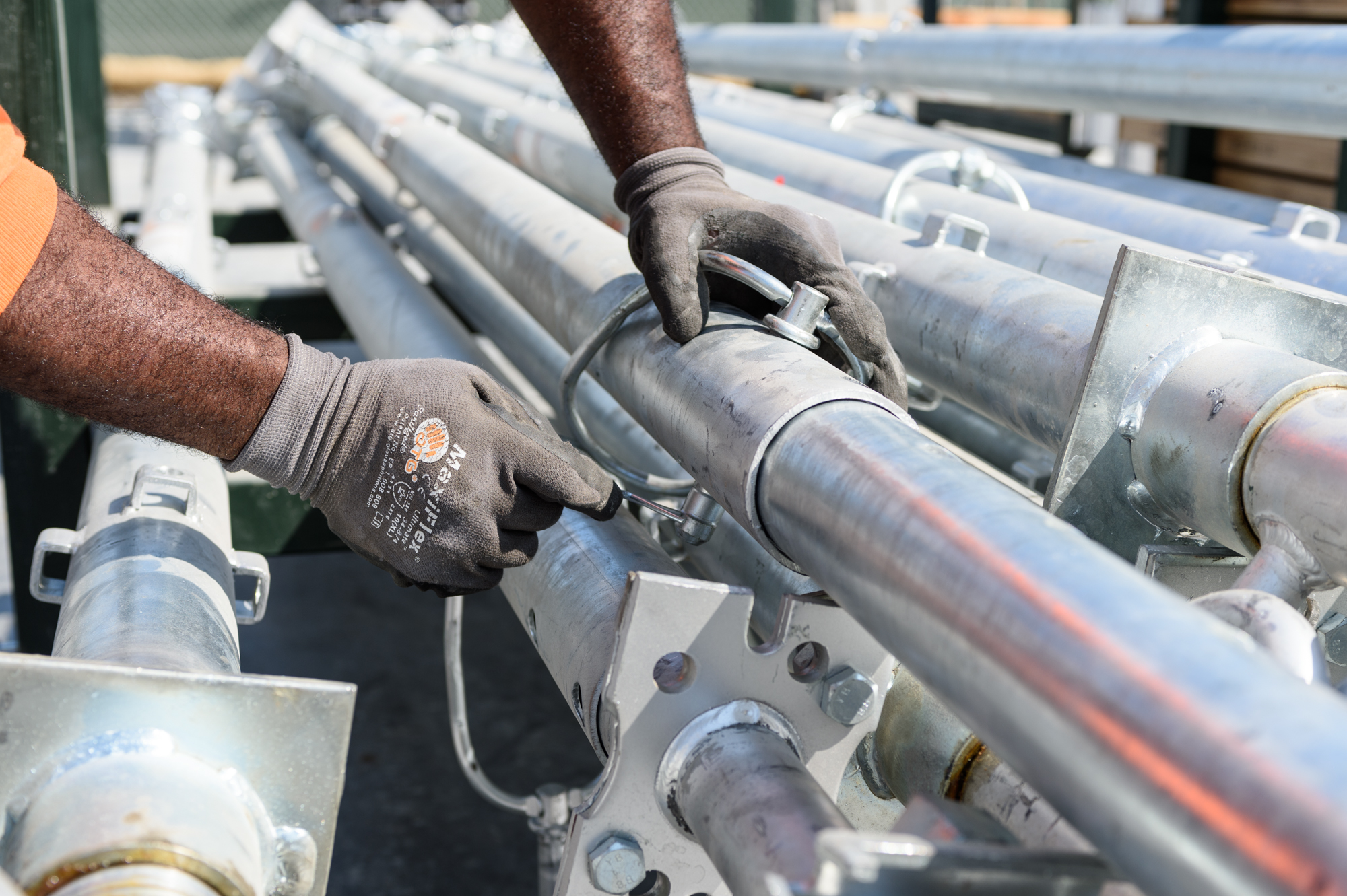

All posts have Jet-Loks so steel cross braces can be utilized to stabilize the posts into 4-legged towers for safety during erection of our system No Tripods or wood bracing required.
"Field Friendly" detailed delivery list with line item inventory.
Posts have a 3:1 Safety Factor
Please contact us at sales@pro-shore.net for pricing and availably.
Watch our videos
-
Pro-Shore™
-
Pro-Deck™
-
Pro-Span™
-
Pro-Net™
-
Pro-Shore™ & Pro-Deck™
in Sacramento -
Pro-Shore™ & Pro-Deck™
in Kings New Stadium
Weight and Packaging Specifications

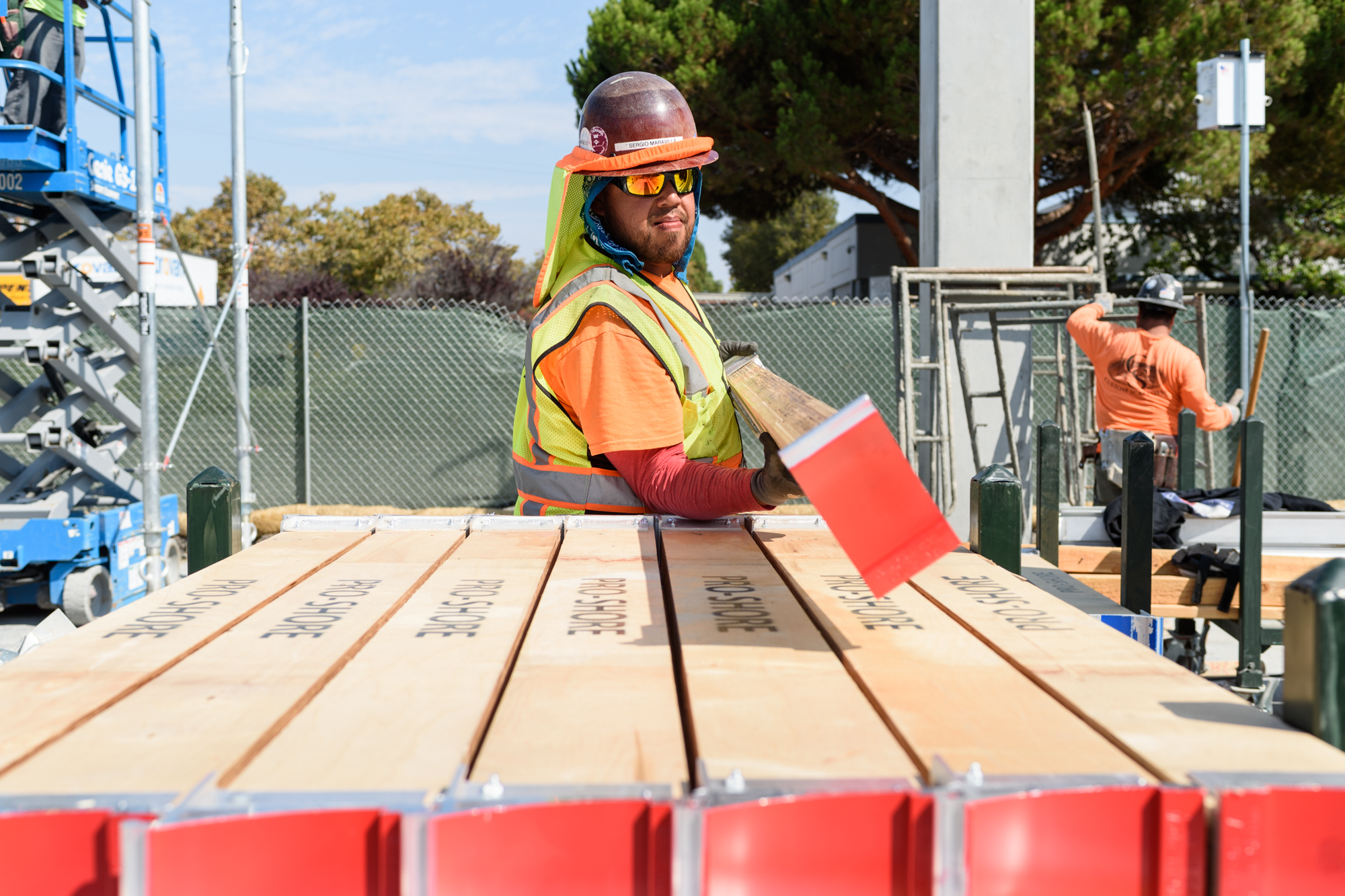

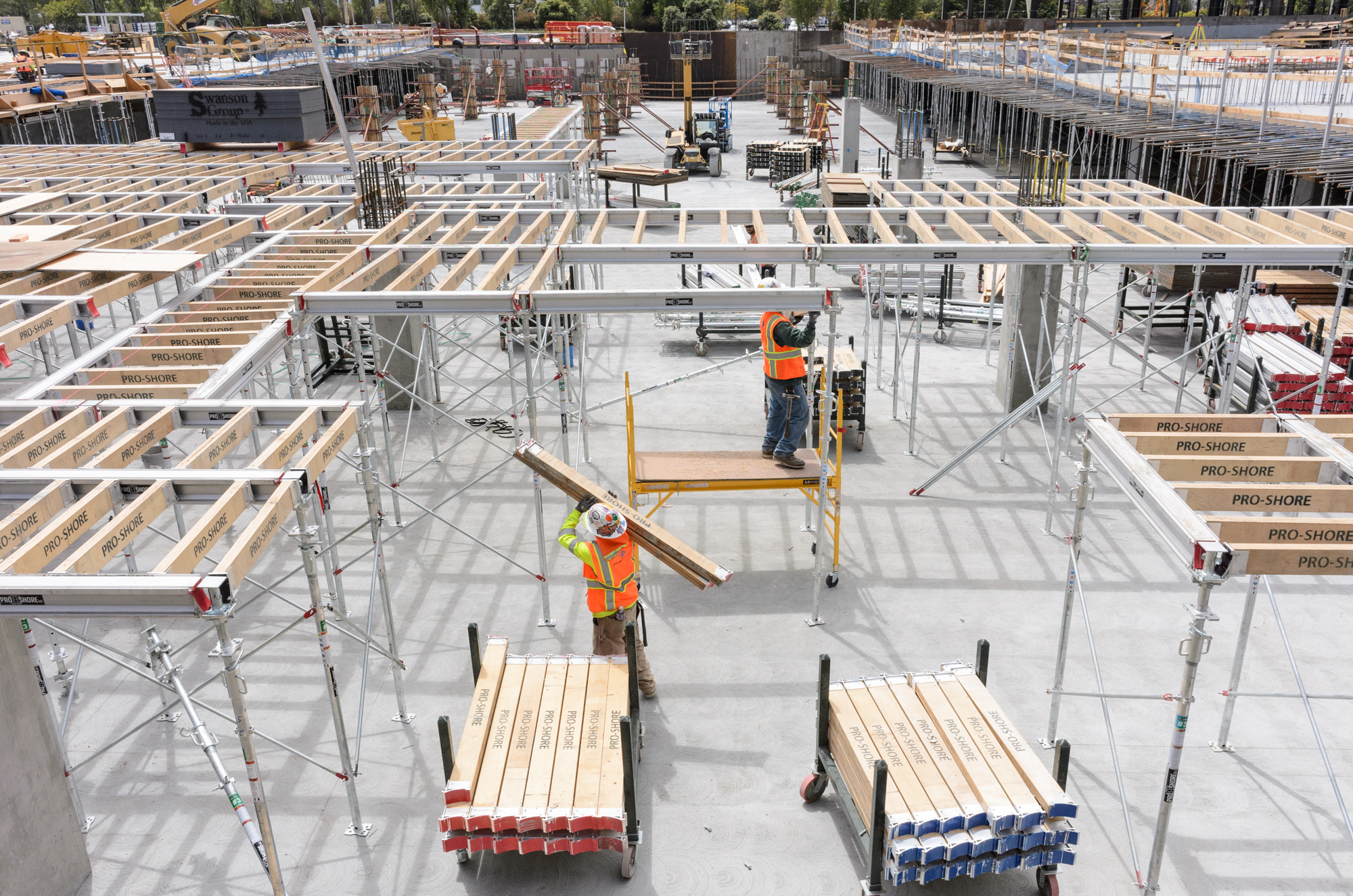

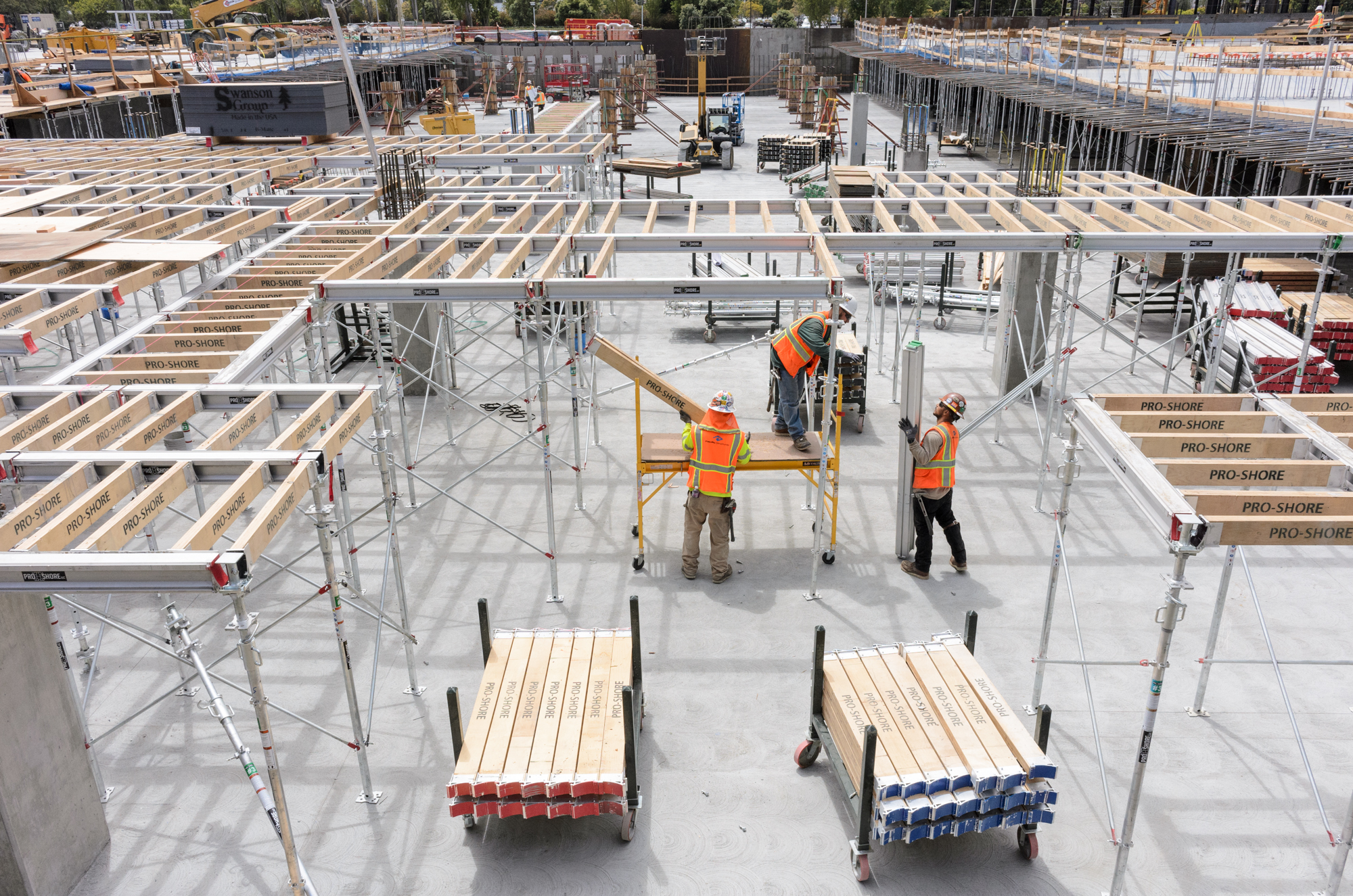

Pro-Shore™ ships all equipment in storage carts which can be moved throughout the jobsite without the use of a crane.
| DESCRIPTION | QUANTITY PER RACK | WEIGHT | WEIGHT PER RACK |
|---|---|---|---|
| Primary Post | 50 | 73lbs | 3733lbs |
| Primary Post w/ Extension | 50 | 88lbs | 4483lbs |
| #3 Post | 50 | 58lbs | 2983lbs |
| #4 Post | 35 | 83lbs | 3083lbs |
| #5 Post | 35 | 88lbs | 3174lbs |
| #5 Post W/ 5'10 Ext. | 35 | 99lbs | 3559lbs |
| Concrete Forming Panels | 5 | 355lbs | 1885lbs |
| Pro-Deck™ Panel 6x3 | 11 | 47lbs | 755lbs |
| Pro-Deck™ Panel 6x2 | 13 | 42lbs | 673lbs |
| Slab Grabber | 50 | 42lbs | 2183lbs |
| 10' Ledgers | 33 | 67lbs | 2311lbs |
| 8' Ledgers | 33 | 54lbs | 1865lbs |

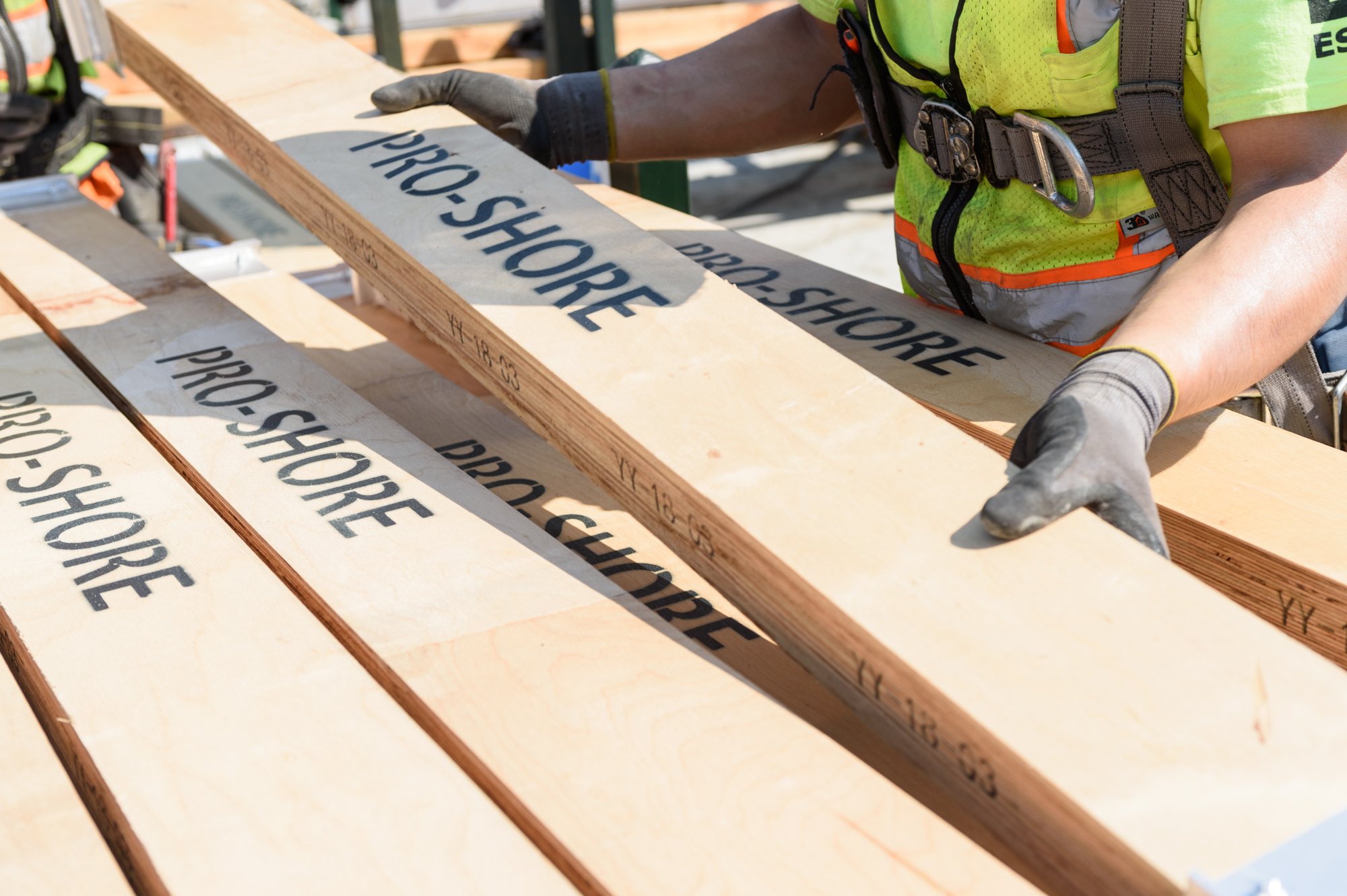

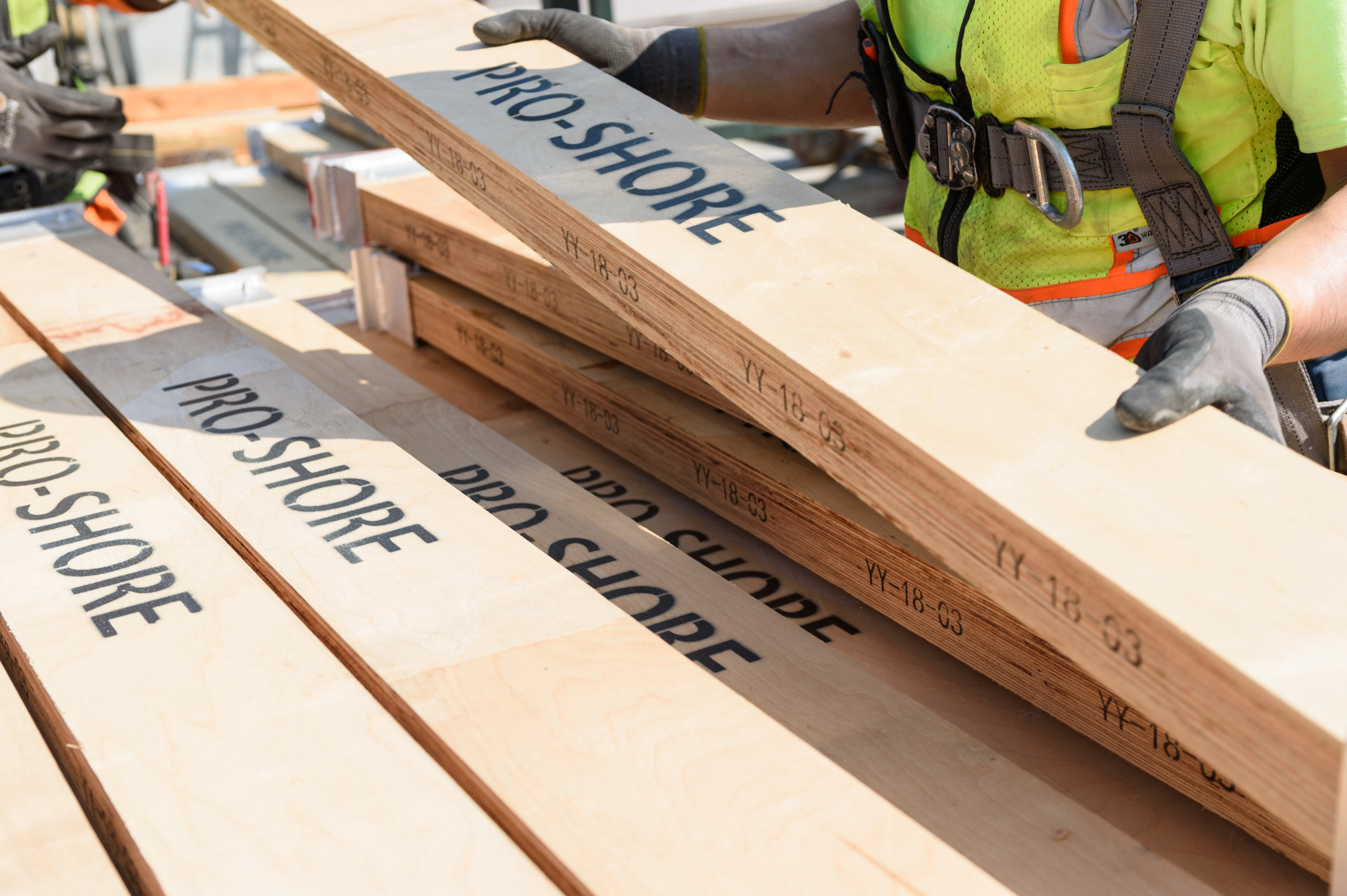

| 4' LVL Joist | 68 | 15.2lbs | 1069lbs |
| 5' LVL Joist | 68 | 19.2lbs | 1137lbs |
| 6' LVL Joist | 68 | 24.2lbs | 1341lbs |
| 6' Aluminum Joist | 50 | 18lbs | 983lbs |
Height & Weight Capacities
All loads are concentric and posts are unbraced
Posts have a 3:1 Safety Factor
Height and Weight figures include UDH Universal Drophead
